Stainless Steel Wire Rope Iran

7X19 stainless steel wire rope

Stainless steel wire rope with a construction of 7 strands and 19 wires in each strand 7×19 is one of the most flexible and precisely engineered types of stainless steel wire ropes. Due to the high number of individual wires, this structure provides excellent bending performance, smooth operation, and high resistance to fatigue when running over sheaves and pulleys. This wire rope is commonly manufactured from AISI 304 and AISI 316 stainless steel grades, offering outstanding resistance to corrosion, moisture, chemicals, and harsh environments, especially in marine conditions. Stainless steel 7×19 wire rope is available in a wide range of sizes, typically from 1 mm up to 20 mm and larger, and depending on diameter and steel grade, it delivers different tensile strength values, making it suitable for light to medium duty applications where flexibility is critical.

In terms of applications, stainless steel wire rope with 7 strands and 19 wires per strand is widely used in marine and offshore equipment, boats and yachts, elevators, control cables, food and pharmaceutical industries, architectural structures, cable railings, and decorative installations. Its combination of high flexibility and reliable tensile strength makes it ideal for systems that require continuous movement,

4mm stainless steel wire rope

The 4 mm stainless steel non-magnetic wire rope with a 7X19 construction is manufactured from austenitic stainless steel, which provides non-magnetic properties. It is commonly produced from AISI 304 or 316 grades, offering excellent resistance to rust and corrosion in humid and marine environments. The unit weight is approximately 0.08 to 0.09 kilograms per meter, depending on steel density and composition. These features make it ideal for marine applications, medical equipment, and architectural systems.

The tensile strength of the 4 mm stainless steel wire rope ranges between 1570 and 1770 N/mm², allowing it to withstand an effective working load of around 900 to 1000 kilograms. Its 7X19 construction, with a higher number of wires, provides superior flexibility compared to simpler designs such as 7X7. This high flexibility makes it suitable for applications where continuous bending is required, significantly extending its service life under dynamic loading.

In terms of abrasion resistance, the 4 mm stainless steel wire rope performs well in industrial environments with repeated contact, while the inherent hardness of stainless steel ensures high durability. Its natural chromium oxide layer forms a passive protective film that prevents rusting even in seawater conditions

8mm stainless steel wire rope

The 8 mm stainless steel wire rope with a 7X19 construction has an approximate unit weight of 0.32 to 0.34 kilograms per meter. This value is calculated based on the density of stainless steel and the number of strands in the rope. Accurate weight data is essential in the design of marine equipment, light-duty lifting systems, and architectural structures, as it directly affects dead load and load-bearing capacity.

In terms of corrosion resistance, the 8 mm stainless steel 316 wire rope performs exceptionally well. The presence of molybdenum in the alloy increases resistance to chlorides and aggressive environments. This property allows the rope to withstand continuous exposure to seawater or high humidity without deformation or rusting. Its surface durability also ensures that the rope maintains a bright and polished appearance over long service periods.

The alloy composition of stainless steel 316 includes approximately 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. This combination provides not only high mechanical strength but also excellent thermal and chemical resistance. The 8 mm stainless steel rope is widely used in marine industries, telecommunication towers, architectural projects, light elevators, and exposed structural applications. The 7X19 constru

5mm stainless steel wire rope

The 5 mm stainless steel 316 wire rope with a 7X19 construction is manufactured from a molybdenum alloyed stainless steel, offering exceptional corrosion resistance. With a tensile strength of 1570 N/mm², it is capable of handling significant tensile loads. Its unit weight is approximately 0.12 to 0.13 kilograms per meter, making precise weight calculations essential in structural design and lifting equipment selection.

The applications of the 5 mm stainless steel 316 wire rope are extensive, covering marine industries, architectural installations, small elevators, and light-duty hoisting systems. The 7X19 construction, with its high number of strands, provides excellent flexibility, allowing smooth operation in pulleys and systems requiring constant bending. This feature ensures not only high mechanical strength but also extended service life under demanding working conditions.

In terms of abrasion resistance, the 5 mm stainless steel 316 rope is slightly less durable than carbon steel in high-friction environments, but the chromium and molybdenum protective layer minimizes wear. Its resistance to rust is outstanding, even in chloride-rich or seawater conditions, ensuring long-term durability. These combined properties make it suitable not only for industrial use but also

10mm stainless steel wire rope

The 10 mm non-magnetic stainless steel wire rope with a common 7X19 construction has an approximate unit weight of 0.50 to 0.52 kilograms per meter. This weight is determined by the high density of stainless steel and the number of strands. Knowing the exact unit weight is essential for designing suspended structures, stainless steel railings, and industrial lifting systems, as it directly affects dead load and load-bearing capacity.

In terms of strength and alloy composition, the 10 mm non-magnetic wire rope is typically made from austenitic stainless steel, such as AISI 304 or 316. It provides excellent resistance to corrosion, humidity, and chemical exposure, making it suitable for marine and industrial environments. Its tensile strength ranges from 1570 to 1770 N/mm², allowing it to handle heavy loads of up to approximately 3 tons safely.

The applications of the 10 mm non-magnetic stainless steel rope are extensive, including marine industries, architectural structures, elevators, hoisting systems, and visible or decorative installations. The 7X19 construction offers high flexibility, enabling continuous bending over pulleys and curved paths. Its abrasion resistance and long service life ensure increased safety and durability in demanding working conditions.

6mm stainless steel wire rope

The 6 mm stainless steel 316 wire rope with a common 7X19 construction has a unit weight of approximately 0.22 to 0.24 kilograms per meter. This weight is determined by the high density of stainless steel and the number of strands. Accurate weight values are crucial in the design of lifting systems, stainless steel railings, and marine equipment since they affect dead load calculations and load-bearing capacity.

The applications of the 6 mm stainless steel 316 wire rope are highly versatile, including marine industries, architectural projects, stainless steel railings, elevators, and light-duty lifting operations. Its 7X19 construction provides excellent flexibility, making it suitable for curved paths and pulley systems. Furthermore, its strong resistance to bending fatigue ensures longer service life in dynamic and continuously moving systems.

In terms of corrosion resistance, stainless steel 316 performs better than 304 due to the addition of molybdenum, especially in chloride-rich environments. This rope remains resistant to seawater exposure without pitting or rusting, while maintaining a bright and durable surface. Mechanically, it offers a tensile strength of around 1570 N/mm², allowing it to handle tensile loads in the range of 1.8 to 2 tons safely.

Stainless Steel Wire Rope Clip Size 3, Anti-Rust

The Size 3 stainless steel wire rope clip is manufactured from anti-rust stainless steel alloy. It is engineered and produced in compliance with the ASME B30.26 standard. Its structure consists of two main parts: a U-shaped body and a pressure piece secured by two nuts. This pressure piece ensures a firm and reliable connection onto the wire rope. The clip is commonly made from grade 304 or 316 stainless steel. The 316 alloy contains approximately 2% molybdenum, making it highly suitable for marine environments. This material provides the clip with high tensile strength and excellent anti-corrosion properties.

This clip is designed to fasten and secure stainless steel wire ropes with a nominal diameter of 3 millimeters. Its primary alloying elements consist of 18% chromium and 8% nickel. This chemical composition prevents oxidation and corrosion in humid conditions. The Size 3 clip can withstand temperatures up to approximately 1050 degrees Celsius. This characteristic allows for its use in food, chemical, and petrochemical industries. Adherence to international design and production standards, such as DIN 741, is also common for these clips. Correct installation of this fastener is crucial for long-term safety and performance.

14mm stainless steel wire rope

Stainless steel wire rope grade 14 is a resilient type of wire rope designed for use in harsh and corrosive environments. It is made from non-magnetic stainless steel, which offers excellent resistance to rust and corrosion, making it especially suitable for use in moist, marine, and industrial environments. The wire rope is 14 millimeters in diameter and can typically support heavy loads of 4 to 8 tons. It is constructed from several twisted steel strands, providing high flexibility and excellent resistance to tension and pressure.

This type of wire rope is ideal for use in various industries such as oil and gas, petrochemicals, marine applications, transportation, and heavy lifting equipment in moist and corrosive environments. The stainless steel wire rope grade 14 generally offers high tensile strength, reaching up to 1600 N/mm², and is resistant to abrasion, pressure, and impact from contact with various materials. Due to its corrosion-resistant properties, this wire rope is a highly suitable option for environments where rust and corrosion are a concern, such as industrial and outdoor conditions. It is widely used in cranes, hoists, transportation systems, and other industrial equipment.

12mm stainless steel wire rope

Stainless steel 316 wire rope grade 12 is a highly durable rope designed for use in corrosive and humid environments. Made from 316 stainless steel, it provides excellent resistance to rust, chemical corrosion, and seawater, making it ideal for marine applications, petrochemical industries, oil and gas, and industrial environments. The rope has a diameter of 12 mm and can typically support heavy loads ranging from 3 to 6 tons. Its construction consists of multiple twisted steel strands, offering high flexibility and excellent resistance to tension and pressure.

Due to the 316 stainless steel material, this wire rope is highly resistant to harsh weather conditions, moisture, chemical exposure, and marine environments, providing a longer service life compared to standard wire ropes. Stainless steel 316 wire rope grade 12 is commonly used in cranes, hoists, industrial hooks, transport systems, and marine equipment. Its twisted structure and high tensile strength ensure high safety, load-bearing capacity, and flexibility during operation. It is particularly suitable for corrosion-sensitive applications, including marine projects, offshore oil platforms, and chemical industries.

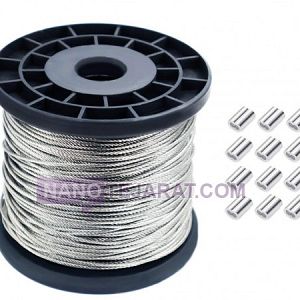

3mm stainless steel wire rope

The 3mm stainless steel wire rope is manufactured from AISI 316 grade stainless steel alloy. Its chemical composition includes 16% chromium, 10% nickel, and 2% molybdenum. This composition provides an ultimate tensile strength of 1200 megapascals. Its construction is typically a 7x7 7 strands with 7 wires per strand configuration. Its precise nominal diameter is 3.00 mm with a production tolerance of ±0.05 mm. The minimum breaking force MBF of this product is 900 kilograms-force. It has a polymer-free coating suitable for operational temperatures from -50 to +400 degrees Celsius.

High flexibility with a minimum bending radius of 15 mm is a key feature. Its bending fatigue resistance exceeds 50,000 cycles under a load of 20% MBF. Its linear weight is approximately 35 grams per linear meter. This wire rope is typically supplied on 100, 250, and 500-meter reels. It can be terminated with stainless steel swage sleeves of equivalent strength. Primary applications are in marine, chemical, and food processing environments. This is due to its exceptional resistance to chloride and acid corrosion.

Stainless steel wire rope

Stainless steel wire rope is a critical industrial component for pulling, lifting, load securing, and guide systems, offering high strength and long service life. It is made of stainless steel grade 304 or 316, with tensile strength ranging from 500 to 1960 N/mm². Wire diameters typically range from 1 to 32 mm, and constructions such as 1x7, 7x7, 7x19, or 6x19 are used to balance strength and flexibility according to project requirements. The rope surface is polished, oil-coated, or galvanized to prevent corrosion and rust, increasing service life.

Structurally, the stainless steel wire rope consists of steel strands twisted around a steel or fiber core, providing high radial strength and reducing internal friction. Precise helical strand design ensures uniform stress distribution, enhancing fatigue and wear resistance. Standard rope lengths range from 5 to 200 meters, with reliable performance in operating temperatures from −40°C to +250°C. Stainless steel wire ropes are widely used in marine, elevator, oil and gas, construction, and industrial lifting equipment.

16mm stainless steel wire rope

Stainless steel wire rope grade 16 is a high-quality type of wire rope specifically designed for use in corrosive and sensitive environments. It is made from non-magnetic stainless steel, offering excellent resistance to corrosion and rust. The wire rope is 16 millimeters in diameter and can typically support heavy loads of 5 to 10 tons. It is constructed from several twisted steel strands, providing high flexibility and good resistance to pressure and tension. This wire rope is ideal for use in industrial, marine, and moist environments.

Due to its rust-resistant properties, grade 16 stainless steel wire rope is commonly used in marine industries, petrochemicals, oil and gas operations, and lifting systems in humid or corrosive conditions. These wire ropes typically offer high tensile strength, reaching up to 1500 N/mm². Additionally, they are resistant to abrasion and damage from contact with various materials, especially in industrial environments. These ropes are widely used in cranes, hoists, industrial transport systems, and other heavy-duty equipment.

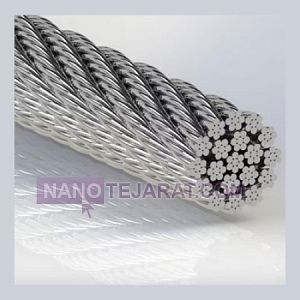

Stainless Steel Wire Rope

Stainless steel wire rope is a high-strength, flexible cable suitable for industrial, marine, and construction applications. Diameters range from 3 to 32 mm, with tensile strength between 0.5 and 25 tons depending on strand construction and size. Common constructions include 7×19 or 6×36 strands, providing a balance of flexibility and strength. The surface is smooth or semi-smooth to reduce wear on pulleys and grooves, and weight ranges from 0.3 to 25 kg per meter.

Structurally, stainless steel wire rope consists of twisted stainless steel strands with a steel or synthetic fiber core. High corrosion and rust resistance make it ideal for marine and humid environments. Proper strand lay ensures uniform force distribution, reduces risk of breakage, and increases service life. Standard lengths range from 50 to 200 meters, with quick attachment using hooks and clamps. Manufactured according to DIN and ISO standards, it guarantees safety and long-term durability.

1X7 Stainless steel wire rope

The 1X7 stainless steel wire rope is an industrial wire rope with low flexibility and high tensile strength, designed for pulling, tensioning, and light lifting applications. It is made of stainless steel grade 304 or 316, with tensile strength ranging from 500 to 800 MPa. The 1X7 construction consists of a single core with 7 wires twisted around it, providing high radial strength and limited bending flexibility. Rope diameters typically range from 1 to 16 mm, with polished or oil-coated surfaces to prevent corrosion and rust.

Structurally, the 1X7 stainless steel wire rope is suitable for precise industrial and marine applications and operates reliably in temperatures from −40°C to +250°C. Its low flexibility and high strength make it ideal for direct pulling, load securing, guide cables, and small pulley systems. Rope lengths are customizable from 5 to 200 meters, and uniform strand design ensures abrasion and fatigue resistance.

6X19 stainless steel wire rope

The 6X19 structure is the most widely used steel wire rope structure, which uses 6 strands of 19 steel wire around a core. 316 stainless steel tow wire core with 6X19 structure is actually a 7X7 steel tow wire with smaller diameter wires. In fact, two different wire diameters are used in the entire structure of stainless steel 316 wire rope with a 6x19 structure. Do not use stainless steel grade 316, which is not attracted to magnets, it is used in the production of 6X19 steel wire rope, the chemical composition of Chinese samples is mostly 18-10-2, which in their alloy composition is 18% chromium, 8% nickel and 2% Molybdenum, which is all three metal elements and all three super active metals, has been used.
