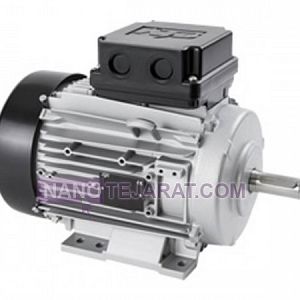

ATB Sever explosion-proof motor

The ATB Sever explosion-proof electric motor is an advanced industrial solution designed for use in environments exposed to flammable gases, vapors, and combustible dust. This Ex motor is engineered in compliance with ATEX 2014/34/EU and IECEx standards and features a protection class of IP65 to IP66. It is available with thermal class F or H and operates reliably in ambient temperatures ranging from -40°C to +60°C. These motors are manufactured in power ratings from 0.55 kW up to 400 kW, supporting voltages from 400 to 690 volts, and frequency options of 50 or 60 Hz. Mounting configurations include foot-mounted B3, flange-mounted B5, or combined B35 types. The housing is made of cast iron with an anti-corrosion epoxy coating and is offered with IC411 or IC416 cooling systems.

The flameproof ATB Sever motor supports temperature classes T3, T4, or T5, making it suitable for use in Zone 1 and Zone 2 hazardous areas. It is available in 2, 4, 6, or 8-pole designs, with rotational speeds ranging from 750 to 3000 RPM. The energy efficiency levels comply with IE2, IE3, or IE4 standards, making it ideal for industrial applications focused on energy savings. Optional features include PT100 temperature sensors, vibration monitoring, brakes, and encoders. High mechanical strength, low

Siemens explosion-proof electric motor

ChatGPT said:
The Siemens explosion-proof electric motor is a three-phase induction type with a squirrel cage rotor, available in power ratings from 0.55 to 315 kilowatts. These motors feature an IP66 protection class and thermal class F, making them suitable for environments with flammable gases and explosive dust. They operate within a voltage range of 220 to 690 volts and frequencies of 50 or 60 Hz. The motor housing is made of durable cast iron and fully complies with international standards IEC 60079-0 and IEC 60079-1. Efficiency levels meet IE3 or IE4 standards, and the motors hold ATEX and IECEx certifications.

Siemens explosion-proof motors are offered in temperature classes T4 and T5, capable of continuous operation in ambient temperatures up to 60 degrees Celsius. They utilize IC411 cooling systems and grease-lubricated bearings with high serviceability, enhancing operational lifespan. Dynamically balanced rotors and low vibration reduce noise and improve equipment durability. The terminal box can rotate 90 degrees, facilitating easy installation. These motors can be mounted in IM B3, IM B5, and IM B35 configurations. All components are manufactured with high precision and strict quality control to ensure safe and reliable performance in hazardous environments.

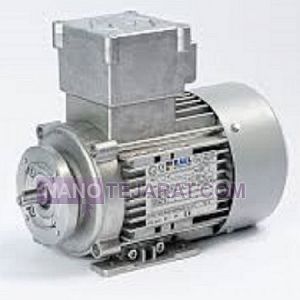

RAEL Explosion Proof Electric Motor

The RAEL explosion proof electric motor, manufactured in Italy, is equipped with international ATEX and IECEx certifications, and its protection class ranges from IP55 to IP66. These motors are produced with power ratings from 0.37 to 315 kilowatts and operate at three-phase voltages between 220 and 690 volts. The operating speeds include 750, 1000, 1500, and 3000 revolutions per minute. The RAEL brand explosion-proof motor housing is made of aluminum or cast iron, offering high resistance to impact and corrosion. With insulation classes F and H, the motor guarantees operation in temperatures ranging from -40 to +55 degrees Celsius and features a spark-proof design suitable for explosive environments.

These RAEL explosion proof motors include an IC411 fan cooling system and advanced insulation to protect against moisture and heat. They also support the installation of temperature sensors and encoders for intelligent performance monitoring. Additionally, the anti-vibration system integrated into the RAEL explosion proof motor reduces noise and extends bearing life. With an explosion protection class of Ex d IIB/IIC T4, these motors are considered the ideal choice for the oil, gas, petrochemical, and mining industries.

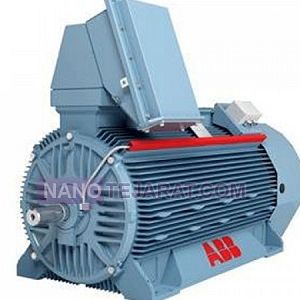

ABB explosion-proof electric motor

The ABB explosion-proof electric motor is specifically designed for hazardous industrial environments. These motors are available with protection classes Ex d Flameproof and Ex e Increased Safety, ensuring high resistance against explosions caused by gases and combustible dust. The power range of ABB Ex motors varies from 0.18 kW up to several hundred kilowatts, with speeds adjustable between 750 and 3600 RPM. The housing is typically made of aluminum or cast iron with corrosion-resistant coating, guaranteeing durability under harsh conditions.

These motors comply with international standards such as IECEx and ATEX, ensuring safe operation in explosive gas atmospheres. Their electrical efficiency ranges from IE2 to IE4, and they can operate reliably within a temperature range of -20 to 40 degrees Celsius. Precise mechanical design minimizes vibration and noise while extending bearing life. Advanced control equipment combined with an optimized cooling system ensures reliable and stable performance of the explosion-proof motor.

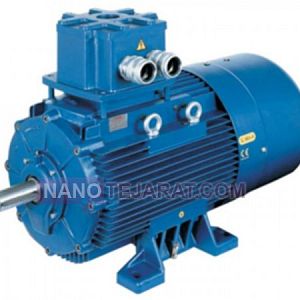

Cemp Explosion-Proof Electric Motor

The technical specifications of the Cemp explosion-proof electric motor are as follows:
Motor type: Explosion Proof
Power range: 0.37 to 90 kW
Operating voltage: Single-phase and three-phase 220-480 V
Motor speed: Up to 3000 RPM
Protection rating: IP54 to IP65
Standards: ATEX, IECEx
Housing material: Durable cast iron
Insulation class: F or H
Operating temperature: -20 to +40 degrees Celsius

If you are looking to purchase a high-quality, safe, and long-lasting explosion-proof motor from the Cemp brand, this brand is one of the best options on the market. It can significantly reduce safety risks in explosive environments and improve the performance of your equipment.

For specialized consultation and price inquiries about the original Cemp explosion-proof electric motor, contact our experts now!

Construction machinery sunroofs

Construction machinery sunroofs are typically made of tempered glass 8 to 12 millimeters thick, with corrosion-resistant steel or aluminum frames. Standard dimensions range from 500×500 to 1200×1000 millimeters, with wind pressure resistance up to 1200 Pascal and ambient temperature tolerance up to 80°C. The opening and closing system uses a 12 or 24-volt electric motor with worm gear and movement speed of 5 to 10 millimeters per second.

The mechanism includes steel rails and rollers with nickel coating and initial lubrication for smooth, wear-free operation. EPDM sealing prevents dust and water ingress into the cabin, with a service life of over 50,000 open-close cycles. Sunroof design complies with ISO 12100 and construction machinery safety standards.

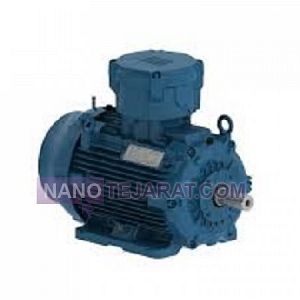

WEG Explosion Proof Motor

The WEG Explosion-Proof Motor is a specialized and widely used product in sensitive industries and hazardous environments with explosion risks.

The most important specifications of the WEG explosion-proof motor, manufactured in Brazil, are:

Safety standards: IECEx and ATEX

Protection type: Explosion-proof Ex d, Ex e

Power range: From a few kilowatts up to several hundred kilowatts

Operating voltage: 380V and 400V

Speed: 1500 and 3000 RPM depending on the model

Protection rating: At least IP55 resistant to dust and water

Body material: Resistant to impact and corrosion

If you are looking to purchase a WEG explosion-proof EX motor with the best price and guaranteed quality, contact our experts now.

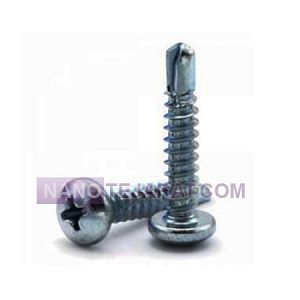

roofing self drill screw

A drill tip screw is actually a type of self-tapping screw that does not need to drill a hole to enter the surface. As its name suggests, the screw tip of a drill bit acts like a drill bit, and their connection is often done with a device. Drill tip screws are also known as gable screws because their hexagonal type is widely used in the connection of galvanized gable sheets. In fact, drill tip screws are produced with different types of holes, such as hexagonal holes, flanged hexagons, or flat head screws. To order and buy a gable screw, you must provide both the diameter of the screw, which is known as the screw size, and the length of the screw.
