Gas Burners

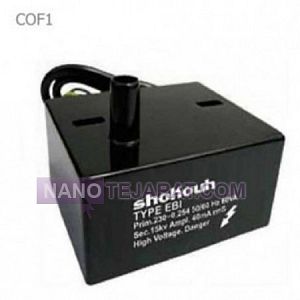

Shokouh single wire spart igniter

Shokouh ignition transformer in the COF1 series has the ability to be installed on gas burners and works with diesel burners. This series of Shokouh gas spark transformer product of Iran is produced as a single wire and is installed on the burners to produce spark. The input voltage of this transformer is 220 volts and it works at a frequency of 50 Hz. The functionality of the Shokouh spark ignition transformer has been in the temperature range of -10 to 60 degrees Celsius, and it has a weight of 320 grams. This tram comes with a one-year warranty. Pars Sanat Sazan Group is your consultant in purchasing all types of ignition transformers and all burner equipment.

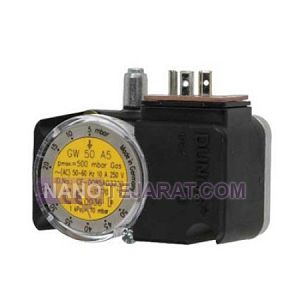

Pressure switch Dongs GW 50 A5

The Dungs GW 50 A5 is a high-precision gas pressure switch specifically designed for low-pressure control in industrial gas systems. This model is particularly suitable for applications where the operating pressure does not exceed 50 mbar. Its mechanical design is based on a pressure-sensitive diaphragm that responds quickly and accurately to pressure changes. The GW 50 A5 is widely used in gas burners, boilers, heating equipment, and safety systems. Its housing is constructed from durable, corrosion-resistant materials, ensuring stable operation in industrial environments exposed to moisture, temperature fluctuations, and harsh conditions.

The GW 50 A5 is equipped with an SPDT Single Pole Double Throw electrical contact that integrates with control systems and issues a switching signal once the preset pressure point is reached. The switching point can be easily adjusted using an internal calibration screw, allowing customization to suit the specific requirements of each application. The maximum allowable overpressure is typically several times the working range, providing enhanced safety in the event of sudden pressure spikes. Built to meet international standards, this pressure switch is a highly reliable choice for accurate gas pressure monitoring in sensitive and safety-cr

Pressure switch Dongs GW 3 A6

The **Dungs GW 3 A6 pressure switch is a mechanical device designed for monitoring and controlling gas pressure in industrial and commercial systems. With an adjustable pressure range—typically between 10 to 200 mbar—this unit is suitable for applications such as gas burners, steam boilers, and heating systems. It features a robust construction made from high-quality materials and is equipped with a microswitch that includes both normally open and normally closed contacts, enabling seamless integration with control circuits. The device offers **IP40 protection** and delivers reliable performance in operating temperatures ranging from **-20°C to +60°C.

Manufactured by the German brand **Dungs**, the GW 3 A6 complies with European standards such as **EN 161** and **EN 1643**. This pressure switch operates on a differential principle and includes a built-in adjustment screw for setting the switching point. Its compact design and easy installation make it well-suited for gas supply and pressure control systems. Additionally, the device is engineered to withstand sudden pressure surges and gas fluctuations, ensuring a high level of safety and operational reliability.

Pressure switch Dongs GW 3 A5

The Dungs GW 3 A5 is a mechanical pressure switch designed for monitoring and controlling gas pressure in industrial and heating systems. This model typically operates within a low-pressure range of 1.5 to 15 mbar, making it ideal for applications such as gas burners, condensing boilers, and combustion control systems. It features a durable housing made of polymer or metal with IP40 protection rating , and is equipped with a microswitch that offers both normally open NO and normally closed NC contacts for integration into control circuits. The switch ensures stable performance across an ambient temperature range of -20°C to +60°C, and it complies with European gas safety standards.

Manufactured by the German company Dungs, the GW 3 A5 operates on a differential pressure principle. It includes an adjustable screw for setting pressure cut-in and cut-out points, and functions mechanically without the need for an external power supply. Its compact design and easy installation make it ideal for both residential and industrial gas supply systems. The switch is capable of withstanding pressure fluctuations and harsh environmental conditions, and is approved according to **EN 161** and EN 1643 safety standards for gas-fired equipment.

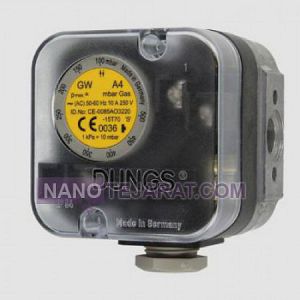

Pressure switch Dongs GW 150 A4

The Dungs Pressure Switch GW 150 A4 is a precise and reliable device designed for pressure control in industrial and commercial gas-fired systems. Manufactured by the German company Dungs, this pressure switch is engineered to monitor and regulate gas pressure within safe operating limits. It operates effectively at high pressures up to 150 mbar , making it ideal for applications such as gas burners, steam boilers, and industrial heating systems. The durable housing is made from materials resistant to temperature, corrosion, and mechanical stress, ensuring stable performance even under vibrations and mechanical shocks.

The GW 150 A4 functions based on a precise mechanical mechanism that sends a switch signal to the controller once the gas pressure reaches a preset level. This model includes an adjustment screw, allowing technicians to finely tune the pressure setpoint based on system requirements. The switch typically features an **IP54** protection class, preventing dust ingress and water splashes, which makes it suitable for use in industrial environments. It is compatible with natural gas, city gas, and LPG, and supports both vertical and horizontal installation without affecting its functionality.

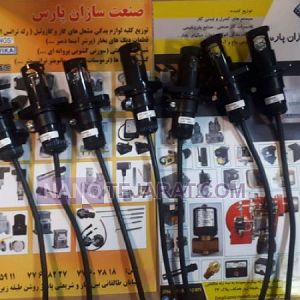

Photosol Brahma model UV1

The Brahma UV1 photocell is a compact ultraviolet flame sensor designed for accurate flame detection in oil and gas burners. It operates within a spectral sensitivity range of 190 to 270 nanometers, ensuring reliable performance in demanding combustion environments. The sensor works with a supply voltage of 230 volts AC and offers a typical power consumption below 1 watt. Its robust construction provides resistance against high temperature, vibration, and electrical noise, making it suitable for industrial and commercial applications. With a fast response time under 1 second, the UV1 enables precise burner control and safe shutdown in case of flame failure.

Brahma UV1 photocell features an operating temperature range of minus 20 to plus 60 degrees Celsius, ensuring consistent performance across diverse conditions. The sensor has a standard cylindrical design with a diameter of 18 millimeters and length of approximately 65 millimeters, allowing easy integration into burner housings. It uses a high durability quartz window that optimizes UV transmission and prevents dust accumulation. The device is compatible with a wide range of Brahma control units, ensuring universal system integration. Typical service life exceeds 10,000 operating hours, reducing maintenance frequency. These
