Cummins engine crankshaft

The Cummins engine crankshaft is the primary component that converts the linear motion of the pistons into rotational torque for power transmission. It is manufactured from forged alloy steel containing chromium and molybdenum to achieve high tensile strength and fatigue resistance. After quenching and tempering heat treatment, the journal surface hardness typically reaches 58 to 62 HRC. Main and rod journal dimensional tolerances are controlled within ±0.01 mm to maintain bearing clearance between 0.04 and 0.12 mm. In medium duty 6 cylinder engines, main journal diameters range from 80 to 110 mm and are designed to withstand torque levels exceeding 2500 Nm. Integrated counterweights reduce torsional vibration and extend fatigue life beyond 10 million load cycles.

In heavy duty industrial and mining Cummins engines, the crankshaft is produced as a single piece forging to minimize stress concentration at critical fillet areas. Fillet radii typically range from 3 to 6 mm to lower stress intensity factors. Precision grinding and superfinishing processes achieve surface roughness below Ra 0.4 micrometers, reducing bearing wear and friction losses. Internal oil drillings with diameters between 6 and 12 mm ensure uniform lubrication under operating pressures up to 6 bar. Accurate d

Cummins 1026BT engine fan

The Cummins 1026BT engine fan is made from aluminum and steel alloy with heat- and corrosion-resistant coating, ensuring durability at engine speeds up to 3500 rpm and operating temperatures up to 120°C. The fan diameter ranges from 450 to 600 mm, with 6 to 8 blades. The blades are hydrodynamically designed with a 25-degree angle and curved cross-section to increase airflow by 15% and reduce engine temperature under heavy load.

The central shaft is made of hardened steel, 35 mm in diameter and 120 mm in length, capable of withstanding radial loads up to 1200 N and axial loads up to 800 N. Surface coating with anodizing and 150-micron epoxy ensures corrosion and industrial moisture resistance. Installation uses grade 10.9 steel bolts, and vibration and dynamic balancing tests with ±0.5 g accuracy ensure a service life exceeding 10 years.

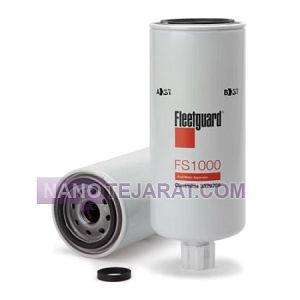

Cummins separator filter

Gas oil that is being injected into Cummins diesel engine is full of contaminants and pollutants in shape of hard solid particles and also liquid shape such as water droplets. old generation of fuel filters that were used on Cummins diesel engine only had the ability to absorb solid particles and help engine parts have higher long time, however new generation of Cummins water separation filters also can absorb water droplets and help the engine experience a more efficient combustion and deliver higher torque. as default FLEETGUARD diesel engine water separator filters are used on Cummins engines that are one of the leading most sophisticated separator filters in the market, developed by Cummins industrial brand. most FLEETGUARD water separator filters on Cummins diesel engines are used as Spin-on.

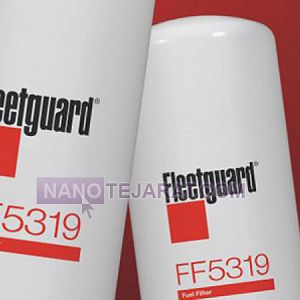

Cummins fuel filter

Cummins diesel engine that consumes gas oil is used on majority of high duty industrial machines including wheel loaders, excavators, bulldozers, power generators and so on. Cummins diesel engine fuel filter is in fact the most important filter since gas oil is one of the dirtiest fossil fuels with many pollutants including solid hard sands, fumes and also liquid pollutants such as water droplets. injecting gas oil into the Cummins diesel engine without purifying it by fuel filter not only decreases the efficiency of diesel engine but also in long run clogs the valves by accumulating particles on the engine head and even worth can erode the liner kit. Cummins diesel engine usually uses FLEETGUARD fuel filter, being one of the subsidiaries of this industrial brand.

cummins 500 KVA diesel generator

500 kava diesel generator with the American Cummins brand can be supplied in two different designs with codes QSZ13-G5 and QSX15-G6. 500 kava diesel generator rental with Cummins brand of America is done in Tehran and cities on the outskirts of Tehran up to a maximum distance of 300 km in order to provide service, review and replacement of parts. The cost of renting a diesel generator of 500 KVA or kilovolt ampere is received on a monthly basis and on the first of every month, and the contract is made with reliable and registered contracting companies. No guarantee is received for renting a diesel generator of 500 kava, but the contract must be signed with a person in a position in the company.

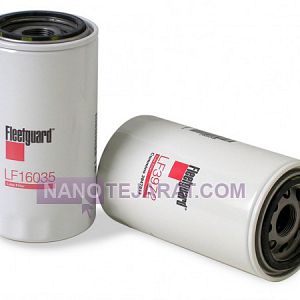

Cummins engine oil filter

FLEETGUARD engine lube or oil filter that is manufactured as one of the official subsidiaries of Cummins is by far the most suitable choice to be used on Cummins diesel engines that use gas-oil as the media for combustion. absorbing and maintaining micro size splinters that are generated due to the reciprocal movement of piston and ring within the liner helps increase life time of other Cummins engine parts. most FLEETGUARD engine lube or oil filters for Cummins diesel engines are produced as spin-on and have specific filter element in different flow rate capacity to be used based on the engine capacity. Cummins diesel engines and Fleetguard filters are both manufactured in the US.

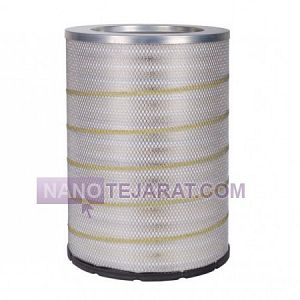

Cummins engine air filter

Cummins engine air filter that purifies the air prior to entering the diesel engine chamber is usually designed and used as cylindrical filters with cellulose filter element. different capacities of Cummins diesel engine require different flow rate and therefore different sizes of engine air filters are used. there are various manufacturers of diesel engine air filter in the world but FLEETGUARD filters are used as default on Cummins diesel engines since they are in fact both one brand with different products. eliminating micro pollutants from the air helps increase the efficiency of Cummins diesel engine as well as protects the engine parts.

cummins 450 kva diesel generator

Diesel generator 450 kava fully serviced, including oil and filter change, ready for delivery. Renting a 450 KVA diesel generator includes the costs related to repairs and replacement of parts, but the cost of the service includes oil and filter change as a separate operating hour. The 450 Kava diesel generator rental contract is signed with registered contractor companies without receiving a guarantee, and the rental fee is charged monthly in advance. To get more information about the technical specifications of this generator, you can continue reading and to get free advice, you can contact the engineers of Hamian Industrial.

Cummins 300 KVA diesel generator

Cummins diesel generator with a power of 300 to 330 KVA is an American product that is also produced under license in England and India. It is possible to rent 300 KVA Cummins diesel generator in working and serviced condition without additional costs in Tehran. It is possible to conclude a contract for projects located within 200-300 km of Tehran with free transfer. In order to rent 300 Kava Cummins diesel generator, carefully read the technical information given below. The rental fee is calculated according to the number of months of the contract, the conditions and working hours of the device, and the distance from Tehran.

cummins 100 kva diesel generator

100-110 KVA Cummins diesel generator produced by Cummins American brand and has a very powerful alternator. Renting 100 KVA diesel generator for industrial use in different categories is done on a monthly basis. It is possible to rent a 100 kava diesel generator within 200 km from Tehran and according to a monthly contract advance payment with various industrial, mining and road construction companies. 110 kava diesel generator engine with Cummins brand is a diesel generator and generates current with minimum fluctuation with high voltage and amperage and has an average level of fuel consumption.

200 kva cummins diesel generator

Cummins 6CTA8.3-G2 series diesel generator with a working capacity of 200 KVA is supplied in working and serviced condition. Cummins 200 Kava diesel generator can be rented within 300 km of Tehran and this device is fully serviced and ready for rent. The cost of repair in the shortest time, review and replacement of parts will be done by the group of generator supporters. The service cost of Kava Cummins 200 diesel generator is charged from the employer based on working hours, which includes changing oil and filters. The cost of diesel used by this diesel generator is naturally with the employer.

150 kva cummins diesel generator

American Cummins brand produces diesel generators up to 3000 kava. 150 KVA Cummins diesel generator rental is done with long-term contracts and monthly payments. It is also possible to enter into contracts with road construction, mining and construction companies in Tehran and within 200 km of Tehran. This diesel generator is offered to customers in a fully serviced condition along with replacement of filters and ready-to-use oil, and the costs related to repairs or replacement of 150 Kava Cummins diesel generator parts are covered by the main industrial group of generator supporters.

Cummins 1000 kva diesel generator

It is possible to rent a diesel generator with a power of 1000 kava, a product of the Cummins brand of America, in Tehran and in the bordering cities of Tehran, in the industrial group of generator supporters. This powerful diesel generator has been worked, serviced and ready for operation, and its rental agreement is only with the contractor companies that have been officially registered. The monthly rental fee is determined according to power consumption, conditions and working environment, operating hours and distance from Tehran and is received at the beginning of every month.

cummins 550 kva diesel generator

Cummins 550 KVA diesel generator is produced in two series, KTA19-G4 with lower engine power and QSX15-G8 with more power. The rental of 550 Kva Cummins diesel generator made in the United States is done in Tehran and neighboring cities up to a maximum distance of 300 km. The defined scope for diesel generator rental is to provide services, service and replacement of parts at a faster speed to the users of the devices. Diesel generators are available for rent, serviced and tested, and the cost of transferring the device is the responsibility of the generator sponsors.

cummins 270 kva diesel generator

The QSL9G3 series diesel generator with a working capacity of 270 KVA is a product of the well-known American brand Cummins. Kava Cummins 270 diesel generator rental is often used in medium power industrial applications and mining applications. This device is available for rent in Tehran and its suburbs maximum distance of 300 km in working and serviced condition. All the services of the 270 Kava Cummins diesel generator have been done, and if it encounters a technical problem, it needs to be repaired or replaced, we will bear the cost of doing it.
