CLIPS Iran

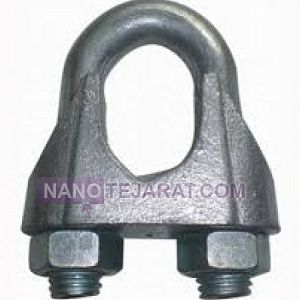

wire rope clips

The steel wire rope clip is a durable mechanical fitting used to secure and fasten wire ropes in lifting systems, cranes, steel structures, and industrial applications. Clip sizes typically match wire rope diameters from 6 mm to 40 mm, with load capacities ranging from 0.5 to 20 tons depending on size and steel grade. The body is made from carbon steel or alloy steel, and some models undergo heat treatment to enhance tensile strength and durability. The surface is protected with hot-dip galvanizing, zinc plating, or phosphating to resist corrosion, moisture, and environmental conditions.

Structurally, the steel wire rope clip consists of a saddle base, a threaded steel U-bolt, and two heavy-duty hex nuts that apply uniform clamping force to secure the wire rope. It is widely used for forming wire rope eyes, structural bracing, and medium-duty connections. Proper installation—including correct number of clips, standard spacing, and correct saddle orientation—is essential for safety. Steel wire rope clips are commonly manufactured according to DIN 741 and EN 13411-5 standards to ensure strength, safety, and reliable performance.

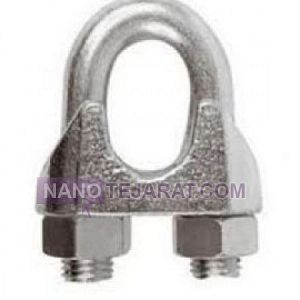

Stainless steel Clips

The stainless steel wire rope clamp is a durable and secure connector used for fixing and securing wire ropes in lifting systems, railings, and suspended structures. It is manufactured from stainless steel grade 304 or 316 with tensile strength ranging from 500 to 800 MPa. Load capacity varies from 0.5 to 5 tons depending on rope diameter and clamp size. The design includes a U-shaped or G-shaped body with stainless steel screws, nuts, and resilient washers for fast and secure installation. Polished or matte industrial finishes provide excellent corrosion resistance in humid and harsh environments.

Structurally, the stainless steel wire rope clamp has a forged body with controlled heat treatment to ensure high strength and durability. Screws and nuts are precision machined to prevent play and stress concentration. It operates reliably in temperatures from −40°C to +300°C and is compatible with steel and stainless steel wire ropes, cables, and rigging systems. Its wide use in marine, construction, oil and gas, and bridge applications ensures long-term safety and stability of lifting and rigging systems.

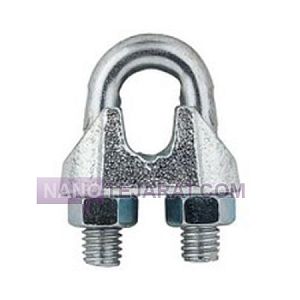

Steel and Cast Iron Clips

Steel and cast iron clips are industrial tools used to secure, fasten, and hold cables, wire ropes, chains, and pipes in various industries such as steel, construction, and lifting. These clips are typically made from hardened alloy steel or cast iron to provide high tensile strength and withstand loads from several hundred kilograms to several tons. The design includes a C-shaped or U-shaped body with a screw, bolt, or locking pin to ensure a secure and reliable connection. The surface is coated for corrosion, wear, and impact resistance to ensure long service life.

Structurally, steel and cast iron clips feature a hardened body and screw or pin capable of handling high radial and axial loads. The geometric design ensures uniform force distribution and prevents stress concentration at connection points. Dimensions and load capacity vary depending on the diameter of the cable, wire rope, or chain. These clips operate reliably within minus 20 to plus 50 degrees Celsius. Each unit undergoes proof load testing and quality inspection before use to ensure safety and durability.

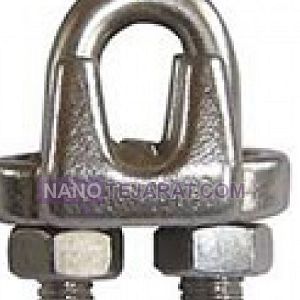

wire rope clips

The forged wire rope clip is a heavy-duty mechanical fitting used to secure and fasten wire ropes in lifting systems, cranes, and industrial applications. Clip sizes are typically selected for wire rope diameters ranging from 6 mm to 40 mm, with load capacities from 0.5 to 25 tons depending on size and material grade. The clip body is manufactured from forged alloy steel with controlled heat treatment, providing high tensile and impact strength. The surface is protected with hot-dip galvanizing or zinc plating for long-term resistance against corrosion, moisture, and wear.

Structurally, the forged wire rope clip consists of a saddle base, a threaded U-bolt, and two heavy-duty hex nuts to ensure a secure and stable connection. The engineered design distributes clamping force evenly across the wire rope, preventing crushing or slippage. This clip is widely used for forming wire rope eyes, temporary or permanent connections, and tensioning systems, manufactured according to EN 13411-5 and ASTM A952 standards to guarantee safety, strength, and reliable performance.

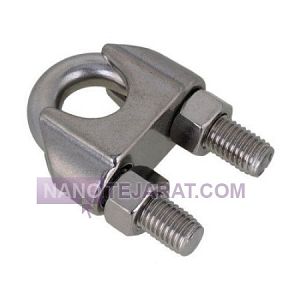

wire rope clips

The cast iron wire rope clip is an economical mechanical fitting used for securing wire ropes in light to medium-duty applications. Clip sizes typically match wire rope diameters from 6 mm to 26 mm, with load capacities ranging from 0.3 to 8 tons depending on size and material quality. The body is made of ductile or malleable cast iron, offering good compressive strength but lower tensile and impact resistance compared to forged types. The surface is usually zinc-plated electro-galvanized for improved resistance against corrosion and moisture.

Structurally, the cast iron wire rope clip consists of a saddle base, a threaded steel U-bolt, and two hex nuts that apply uniform pressure to secure the wire rope. This type is mainly used for forming wire rope eyes in non-critical applications, light-duty rigging, and temporary connections. Proper installation, including correct number of clips and spacing, is essential for safety. Cast iron wire rope clips are commonly manufactured according to DIN 741 standards to provide acceptable performance for light-duty uses.

clips

The clip is a fastening tool used for holding and securing various components in mechanical systems, plumbing, electrical systems, and the automotive industry. Clips come in various types, such as pipe clips, cable clips, and metric clips, with sizes ranging from 10 mm to 100 mm. Clips are typically made of stainless steel, brass, or high-pressure and temperature-resistant plastic, with surfaces coated for corrosion resistance or epoxy paint to ensure long-lasting durability against moisture, wear, and corrosion.

Structurally, the clip consists of a main body with slits or holes for attachment to different parts. The design of the clip ensures that components are securely connected without damage and prevents slippage or excess movement. Clips are optimized for use in various industries such as automotive, electrical, plumbing, construction, and electronic equipment, manufactured according to DIN 3015 and ISO 9001 standards to ensure safety and long-term performance.

Crosby Clips

The Crosby wire rope clamp is a high-strength steel component used to securely connect wire ropes in lifting, crane, and load securing systems. The body is made from alloy steel with heat treatment and high surface hardness, providing tensile capacity from 1 to 50 tons. Galvanized or industrial anti-rust coating ensures corrosion and moisture resistance. The design complies with international Crosby, DIN, and ISO standards, with a safety factor typically 5 times the working load.

Structurally, the clamp consists of two U-shaped halves and a high-strength steel bolt with locking nut. Dimensions vary according to wire rope diameters between 6 and 50 millimeters, enabling quick and secure installation. The clamp ensures uniform load distribution and prevents rope slippage. Widely used in overhead cranes, mobile cranes, elevators, and industrial load securing systems, Crosby clamps provide long service life.

clips

An industrial clip is a mechanical fastening element used to hold cables, hoses, or small industrial components. It is typically made of 304/316 stainless steel, aluminum, or engineering-grade plastic. Clip length ranges from 20 to 200 mm, and width ranges from 5 to 50 mm. Tensile strength ranges from 50 to 2000 kg depending on material and dimensions. Surface is coated with galvanization, anodization, or plastic for corrosion and wear resistance.

Structurally, it consists of a U-shaped or C-shaped body with screw or clamp attachment for quick and secure installation. Body thickness ranges from 2 to 10 mm, and operating temperature ranges from -40 to 150°C. Industrial clips are optimized for production lines, hydraulic and pneumatic systems, industrial cable management, and mechanical equipment, providing high resistance to vibration and mechanical stress.
