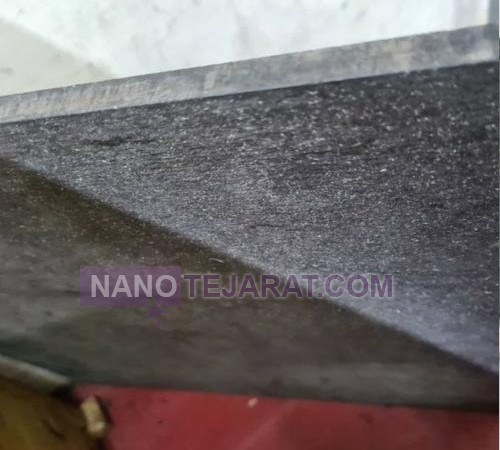

The industrial brake lining sheet EREN Turkey model 50X50 with a 12 mm thickness is manufactured from non-asbestos composite materials with an average density of 2.00 g/cm³. Its chemical composition includes approximately 30% aramid and cellulose fibers, 25% phenolic resin, 25% metallic powders mainly bronze and copper, and 20% heat-resistant mineral fillers. This formulation provides a stable structure with a consistent friction coefficient ranging from 0.40 to 0.47. EREN brake linings are designed for industrial braking systems, heavy cranes, and process machinery that require smooth engagement and high mechanical stress resistance.
The production process of the EREN sheet is precisely controlled with a dimensional tolerance of ±0.1 mm. Each sheet undergoes compression strength, porosity, and surface uniformity testing prior to packaging. The product complies with international standards ISO 26865, SAE J661, and DIN 6951, ensuring stable frictional performance across varying mechanical and thermal conditions. Tight thickness tolerance and uniform layer bonding significantly enhance the material’s durability and adhesion.
In terms of wear performance, the 12 mm EREN lining demonstrates a wear rate of approximately 0.16 mm³/N·m and achieves over 1700 operating hours without a measurable drop in friction. It operates efficiently in both dry and semi-oil environments, maintaining thermal stability up to 360°C continuously and up to 420°C intermittently. The unit surface weight ranges between 11.6 and 12.0 kg/m², making it an ideal solution for industrial braking systems subjected to high surface pressures.
