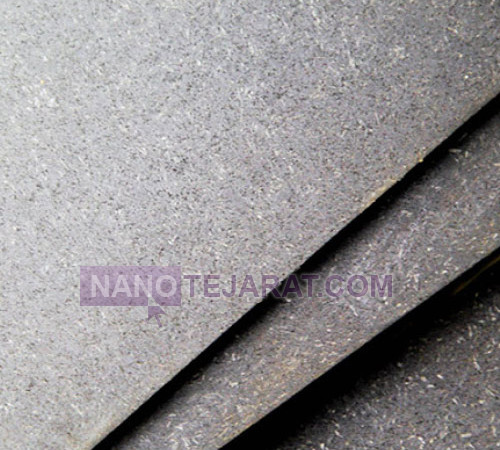

The industrial brake lining sheet EREN Turkey model 50X50 with a 14 mm thickness is manufactured from a non-asbestos composite material with an average density of 2.05 g/cm³. The formulation includes 28% aramid and mineral fibers, 27% phenolic resin, 25% metallic powders bronze and copper, and 20% heat-resistant fillers. The unit surface weight is approximately 13.2 to 13.5 kg/m², making it suitable for heavy-duty industrial applications. The dry friction coefficient ranges between 0.41 and 0.46, ensuring high stability under elevated pressure and temperature conditions.
In terms of wear and thermal resistance, the EREN 14 mm sheet offers a wear rate of about 0.15 mm³/N·m and maintains steady performance in dry operation up to 370°C. Under lubricated conditions, the friction coefficient slightly decreases to 0.33–0.36 while maintaining operational stability. The lining provides short-term thermal resistance up to 420°C, and its adhesive composite structure prevents cracking or delamination during repeated thermal cycles. These characteristics make the 14 mm EREN sheet an ideal choice for industrial braking systems and hydraulic clutch assemblies.
