Price: To be negotiated

elevator rail

Exporter, Wholesale, Manufacturer
Tehran-West
+989122003350

Price: Negotiate

Price :negotiated

elevator rail , Iran

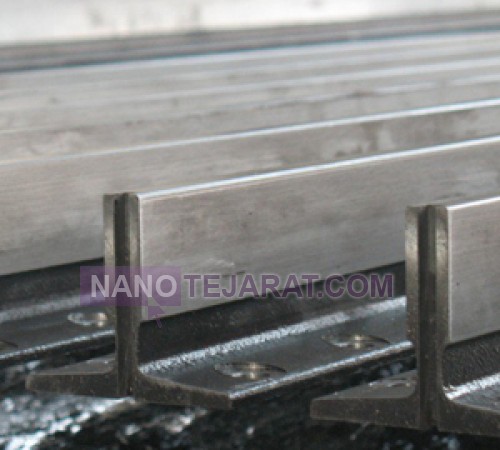

Elevator guide rails are made from cold-drawn low-carbon steel grade KP80 or KP100 per JIS A 5505 standard. The rail profile is an inverted T-beam shape with dimensional accuracy of ±0.5 mm. Standard rail length is 5 meters cuttable up to 8 meters with linear weight of 8 to 25 kg per meter. Surface hardness is maintained at 120–150 Brinell HB for wear resistance. Maximum permissible deviation over 5 meters is 1.5 mm with overall straightness under 0.5 mm per meter. Rails undergo stress-relief annealing to prevent installation deformation.

The contact surface with guide shoes is mechanically finished to a surface roughness of Ra 3.2 microns. Rail joints use steel plates with 4 to 6 Grade 8.8 bolts and precision coupling systems. Surface coating includes hot-dip galvanizing 85 microns or catalytic epoxy paint for humid environments. Bending resistance capacity ranges from 200 to 800 N/mm² depending on profile design. Rails are designed to withstand dynamic loads up to 150% of rated car and counterweight loads. Manufacturing complies with EN 81-20/50, ISO 7465, and GOST 51616 standards for safety and durability.You can order and buy elevator rail from Iran by contacting us through whatsaap and email.
WEBSITE: elevator rail Iran

Types, Material, and Connections of Elevator Rails

Elevator rails are generally produced in two types: T-shaped and Hollow Hollow. The rail material is typically high-strength mild carbon steel such as grade AISI 1045. The rail surface undergoes heat treatment or case hardening for wear resistance. Rails are connected to each other using high-strength galvanized bolts and nuts. Fishplates are used for end-to-end rail connections. Rails are secured to the elevator shaft wall using support brackets. Precision in aligning and leveling the rails during installation is critical for smooth cabin movement. All connections and rail materials must comply with standards such as EN 81-20 or ASME A17.1.
