Elevator cabin , Iran

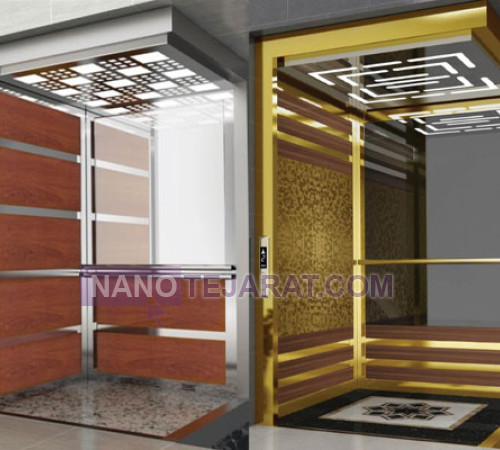

The elevator car is constructed from aluminum composite panels 2–4 mm thick or galvanized steel with powder coating. Standard internal dimensions range from 1100x1400 mm to 2100x2300 mm with ceiling heights of 2200–2600 mm. Rated load capacity varies from 450 to 2500 kg, designed with a 1.25 safety factor relative to maximum load. The car floor uses anti-slip steel plates 3 mm thick supporting distributed loads up to 1500 kg/m². Interior walls are clad with 304 stainless steel panels 1.5 mm thick featuring a brushed finish. All joints use Grade 8.8 steel bolts and anti-vibration seals to reduce noise below 40 decibels.

The car frame consists of welded steel profiles with 235 MPa yield strength and anti-corrosion epoxy coating. The suspension system includes four to eight guide shoes with graphite-composite or polyurethane materials for friction reduction. The car door is a center-opening automatic type with a 100W geared motor and opening speeds of 0.3–0.8 m/s. The car roof features a 600x800 mm safety hatch supporting 100 kg weight and 20W LED lighting systems. The floor integrates load cells with ±1% accuracy and a re-leveling system with ±5 mm precision. Manufacturing complies with EN 81-20/50, ISO 4190, and ASME A17.1 standards for safety and optimal performance certification.You can order and buy Elevator cabin from Iran by contacting us through whatsaap and email.
