Price: To be negotiated

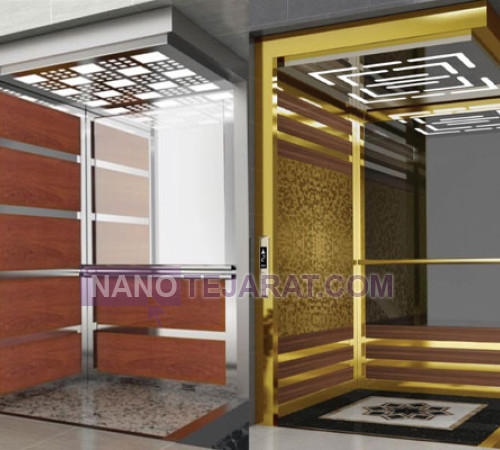

Elevator cabin

Exporter, Wholesale, Manufacturer
Tehran-West
+989122003350

Price: Negotiate

Price :negotiated

Elevator cabin , Iran

The elevator car is constructed from aluminum composite panels with polyethylene core or galvanized steel, 1.5–3 mm thick. Standard internal dimensions range from 1200x1400 mm to 2200x2400 mm with ceiling heights of 2200–2600 mm. Load capacity varies from 450 to 2000 kg, designed with a 1.25 safety factor relative to maximum load. The car floor uses corrugated steel plates 2.5 mm thick with anti-slip epoxy coating achieving a friction coefficient of 0.75. Interior walls are clad with 304 stainless steel sheets 1.2 mm thick featuring a mirror bead-blasted finish. All joints use Grade 8.8 steel bolts and elastomeric anti-vibration seals to reduce noise below 35 decibels.

The car frame consists of welded steel profiles with 275 MPa yield strength and anti-corrosion cataphoresis coating. The suspension system includes four to six guide shoes with graphite-filled thermoplastic material for friction coefficients below 0.1. The car door is a two-panel automatic type with a 110W synchronous motor and opening speeds of 0.4–0.7 m/s. The car roof features a 500x700 mm safety hatch supporting 120 kg weight and integrated 24V LED lighting. The floor integrates load cells with ±0.5% accuracy and an automatic re-leveling system with ±3 mm precision. Manufacturing complies with EN 81-20/50, ISO 4190-1, and ASME A17.1/CSA B44 standards for safety and optimal performance certification.You can order and buy Elevator cabin from Iran by contacting us through whatsaap and email.
WEBSITE: Elevator cabin Iran

Types of Elevator Cabins: Glass, Steel, All-Glass

Elevator cabins are designed in three main types: steel, glass, and all-glass. Steel cabins with stainless steel or painted finishes are common and cost-effective. This model offers high strength and requires low maintenance. Glass cabins typically combine a steel frame with glass panels. This design enhances natural light and modern aesthetics. All-glass cabins utilize a fully glass structure with special fittings. This type provides maximum visibility and a luxurious design but requires higher cost and maintenance. The choice of cabin type depends on building architecture, budget, and clients visual preference. Adherence to safety standards and load capacity is mandatory for all three types.
