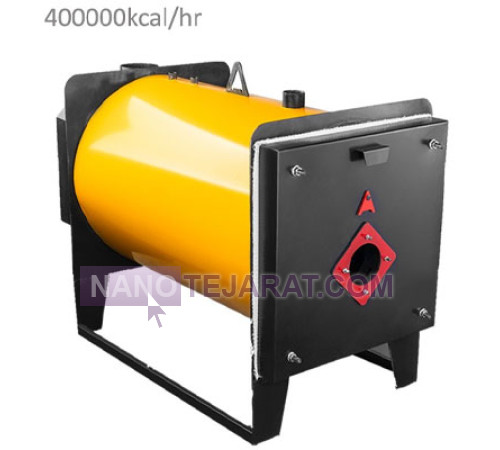

Araz Sanat B400s 400,000 Steel Boiler Room Hot Water Boiler , Iran

The Araz Sanat B400s steel hot water boiler delivers a nominal thermal capacity of 400,000 kcal/h. This unit is optimized for operation with natural gas and diesel fuel. Its combustion efficiency exceeds 89 percent. The boilers maximum allowable working pressure is 6 bar. It is constructed from low-carbon ST37 steel plates. The thickness of the main body plates is precisely calculated for different sections. The boiler features a three-pass smoke tube design with a wet-back configuration. This structure maximizes heat transfer efficiency. Its heating surface area is approximately 12 square meters. All seams and connections are tested using argon welding methods. This process guarantees structural integrity and quality.

This hot water boiler is manufactured in compliance with the EN 12953 international standard. The body is insulated with refractory rock wool with a density of 120 kg/m³. The external cladding consists of 0.6 mm thick galvanized sheet. It is equipped with an atmospheric burner capable of capacity modulation. The output water temperature is controlled within a range of 70 to 90 degrees Celsius. Key components include a cylindrical furnace and a combustion chamber. The overall dimensions are approximately 250 by 120 by 120 centimeters. This product is suitable for central heating systems in large buildings. A digital PID controller continuously monitors operational parameters. This feature optimizes energy consumption effectively.You can order and buy Araz Sanat B400s 400,000 Steel Boiler Room Hot Water Boiler from Iran by contacting us through whatsaap and email.
