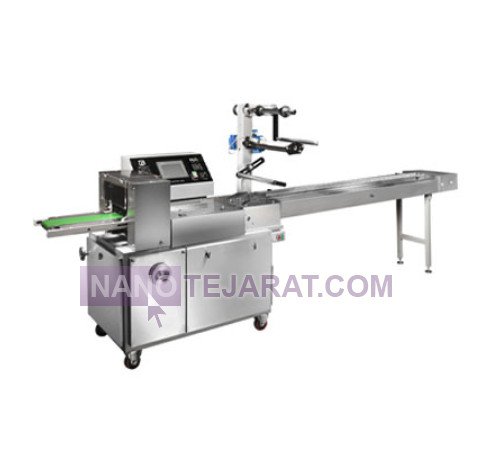

The Halva Shekari packaging machine utilizes AISI 304 stainless steel for all direct product contact surfaces. Packaging speed is adjustable between 30 to 70 packages per minute with cutting accuracy of ±0.3 mm. A dynamic weighing system operates with ±0.5 gram accuracy and a maximum capacity of 2 kg per minute. Servo motors 1-3 kW with PLC controller and a 10-inch touchscreen form the user interface. The conveyor belt is made of non-stick polyurethane, 400 mm wide, with variable speed of 0.5 to 2 m/s. A vision inspection system with a 2-megapixel camera and LED lighting checks product position and consistency.

The line structure includes stations for mold unloading, forced cooling, weighing, cutting, and wrapping. The packaging material supports metallized polypropylene PP Met film with thicknesses from 25 to 40 microns. Final package dimensions, adjustable digitally, range from 80x60 mm to 200x150 mm. The heat sealing system uses ceramic heating elements at 100-160°C and 0.2-0.5 bar pressure. All mechanical components feature high-precision linear guides and coated stainless steel bearings. The machine complies with ISO 22000 hygiene standards, holds NSF certification, and CE marking for electrical safety.You can order and buy masaelimachine.com from Iran by contacting us through whatsaap and email.
WEBSITE: masaelimachine.com Iran

Key Considerations for Installing and Commissioning Packaging Machinery

Packaging machinery should be installed in a clean, dry, and vibration-free environment. Three-phase power and stable air pressure must be supplied according to the machines technical specifications. Precise leveling of the machine chassis using a laser level is essential for smooth operation. Proper connection of input systems such as roll feeders and conveyors must be verified. Calibration of sensors and adjustment of initial parameters like temperature, pressure, and speed is mandatory. Comprehensive operator training on operation, safety controls, and basic maintenance should be provided. Initial testing with simulated materials before actual production is conducted to troubleshoot issues. Complete documentation of installation steps and set parameters should be prepared for future reference. Commissioning certificate and final approval must be issued by the manufacturers technical representative.
