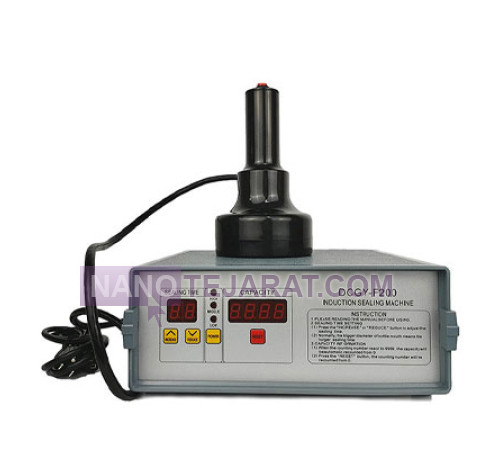

Induction Sealing Machine , Iran

The induction sealer features a carbon steel frame with powder epoxy coating and anodized aluminum components. Output power ranges from 1 to 5 kW with an operating frequency of 20–40 kHz. Maximum sealing width is 150 mm with heat penetration depth up to 3 mm. Sealing time is typically 0.5–3 seconds, adjustable in 0.1-second increments. A water-cooling system operates at 10 liters per minute with a constant temperature of 20°C. It can be integrated into production lines with speeds of 100–400 containers per minute.

The system utilizes an IGBT generator with 95% efficiency and a digital PID control system. The sealing coil is made of pure copper with silver plating and silicone insulation. Infrared sensors monitor lid surface temperature with ±2°C accuracy. A 7-inch touchscreen display with a multilingual interface allows parameter adjustment. Machine dimensions are 600 x 500 x 400 mm, weighing 45 kg. It complies with CE and UL safety standards and carries ISO 9001 certification.You can order and buy Induction Sealing Machine from Iran by contacting us through whatsaap and email.
