Packing machine , Iran

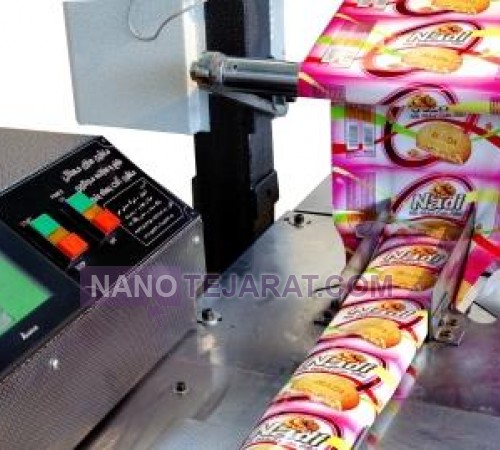

The traditional cookie packaging machine is constructed from 1.5 mm thick 304 stainless steel for product contact parts. Overall dimensions are 2800 x 900 x 1600 mm with an approximate weight of 550 kg. Main motor power is 2.2 kW with variable frequency drive for speed adjustment 0-50 packs/minute. The ceramic element heating system operates at 800W with PID temperature control from 50°C to 150°C. The conveyor belt uses food-grade polyurethane, 300 mm wide and 3 mm thick. Film cutting accuracy has ±0.5 mm tolerance, and weighing precision has a 0.2-gram standard deviation.
The machine structure includes automatic feeding, bag forming, weight filling, heat sealing, and output sections. A machine vision system with a 5-megapixel camera performs final inspection at 60 frames per second. Compressed air filters 0.1 micron serve pneumatic systems operating at 0.6 MPa pressure. A 10-inch touchscreen control panel features a multilingual interface and 50 recipe storage capacity. Packaging film consumption uses biaxially oriented polypropylene BOPP, 280 mm wide and 25 microns thick. The machine is designed and manufactured according to FDA and CE food industry hygienic standards.You can order and buy Packing machine from Iran by contacting us through whatsaap and email.
WEBSITE: Packing machine Iran
Type of Traditional Cookie Packaging Machine and Loading Mechanism
Traditional cookie packaging machines primarily use end-seal or flow pack technology. These machines are typically designed as semi-automatic. The loading mechanism in these systems is often manual or semi-automatic. In the manual loading method, the operator places the cookies in rows into the feeding channel. More advanced models use a vibration system or small conveyor for automatic cookie transfer into the channel. The cookies are then guided into the wrapper by rail feeders or a pocket elevator. The sealing mechanism uses heat and pressure to completely seal both ends of the package. These machines are usually adjustable for different cookie sizes. The choice of loading mechanism depends on production volume, budget, and the required level of automation.
