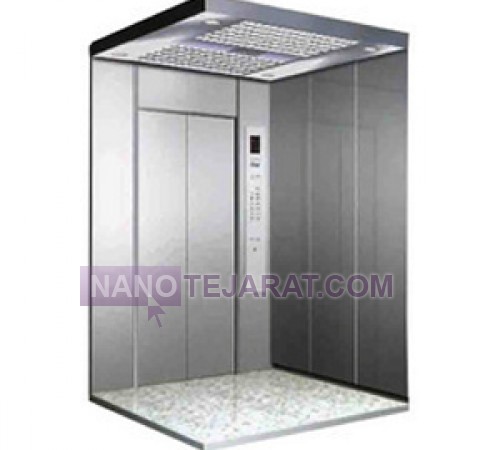

Elevator cabin , Iran

The elevator car is constructed from aluminum composite sandwich panels with polyethylene core or hot-dip galvanized steel, 1.5–3 mm thick. Standard internal dimensions range from 1200x1400 mm to 2200x2400 mm with ceiling heights of 2200–2600 mm. Load capacity varies from 450 to 2000 kg, designed with a 1.25 safety factor relative to maximum load. The car floor uses corrugated steel plates 2.5 mm thick with anti-slip epoxy coating achieving a friction coefficient of 0.75. Interior walls are clad with 304 stainless steel sheets 1.2 mm thick featuring a mirror bead-blasted finish. All joints use Grade 8.8 steel bolts and elastomeric anti-vibration seals to reduce noise below 35 decibels.

The car frame consists of welded steel profiles with 275 MPa yield strength and anti-corrosion cataphoresis coating. The suspension system includes four to six guide shoes with graphite-filled thermoplastic material for friction coefficients below 0.1. The car door is a two-panel automatic type with a 110W synchronous motor and opening speeds of 0.4–0.7 m/s. The car roof features a 500x700 mm safety hatch supporting 120 kg weight and integrated 24V LED lighting. The floor integrates load cells with ±0.5% accuracy and an automatic re-leveling system with ±3 mm precision. Manufacturing complies with EN 81-20/50, ISO 4190-1, and ASME A17.1/CSA B44 standards for safety and optimal performance certification.You can order and buy Elevator cabin from Iran by contacting us through whatsaap and email.
