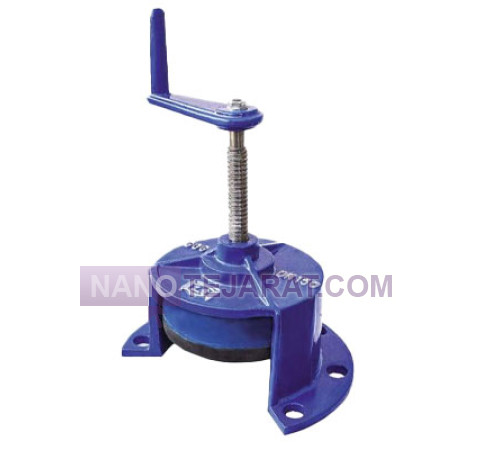

The Mahab chamber gate valve is made of ductile iron body with a dense epoxy coating, ensuring resistance to corrosion, impact, and high pressure. Its nominal diameter ranges from 80 to 1000 millimeters with a working pressure up to 16 bar. The rubber-seated wedge with a metallic core provides perfect sealing even with suspended particles in the flow. The main stem is manufactured from stainless steel with a tensile strength above 700 MPa. Flanged ends comply with EN 1092-2 standard, and the valve operates reliably within a temperature range of 0 to 70°C.
The Mahab chamber gate valve can be equipped with manual or gearbox actuators for installation in municipal water lines, reservoirs, and underground utilities. All moving parts are machined with a precision tolerance of ±0.3 mm to ensure smooth, vibration-free operation. Hydrostatic testing is conducted at 24 bar and leakage testing at 17.6 bar. A 250-micron powder epoxy coating extends the service life beyond 20 years. The ergonomic chamber cover design allows easy access and maintenance.
WEBSITE: Mahab chamber gate valve Iran
The Mahab sluice gate valve for wet wells is made of ductile iron or corrosion-resistant steel and is designed to withstand working pressures up to 16 bar in water, wastewater, and industrial networks. The valve disc and internal mechanism are coated for wear and corrosion resistance, ensuring uniform, leak-free operation. It is manufactured according to national and international standards such as PN16, ISO 5208, and flange-related standards, allowing safe and secure installation in existing pipelines. Its wet well design and flanged installation enable precise flow control and prevention of hydraulic shocks. High-quality raw materials and adherence to standards ensure long service life, safety, and stable performance of the Mahab sluice gate valve.
