Stanless Steel Wire Rope Iran

Stanless steel wire rope

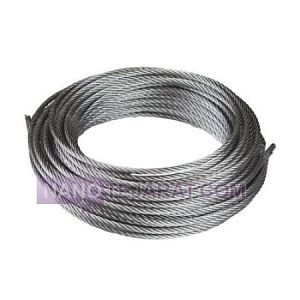

Stainless steel wire rope is manufactured from stainless steel austenitic alloys. These cables are primarily produced in two chemical grades: 304 and 316. Grade 304 contains approximately 18% chromium and 8% nickel and exhibits slight magnetic properties. Grade 316, with the addition of 2-3% molybdenum, offers superior corrosion resistance, particularly against chlorides, and is non-magnetic. The nominal tensile strength of these wire ropes is typically limited to 1570 Newtons per square millimeter N/mm². This value is lower compared to common carbon steel wire ropes. The reason for this lower strength is the reduced carbon content and its replacement with higher levels of chromium and nickel for inherent anti-corrosion properties.

The engineered structure of a stainless steel wire rope consists of three main components: wire, strand, and core. Common constructions include 1x7, 7x7, and 7x19. For instance, the 7x7 construction consists of seven strands, each made of seven wires, and often possesses non-rotating properties. The highly flexible 7x19 construction is suitable for hoists and winches. The central core is either made of steel IWRC for higher strength or synthetic fiber FC for greater flexibility. The lay of the strands around the core can be standard, Seale, Warring

Stanless steel wire rope

Stainless steel wire ropes are manufactured in AISI 304 and 316 grades. These grades possess an ultimate tensile strength of 500 to 700 MPa. The non-kinking or regular lay construction prevents twisting and deformation. The stainless sheath is fully resistant to chlorides and acids in wastewater. The non-kink design reduces internal wear and increases service life. Common diameters for this product range from 1 to 12 mm. High flexibility and fatigue resistance are key characteristics. These wire ropes also resist stress corrosion and pitting. Manufacturing standards comply with ISO 2408 and DIN 3055.

The primary application is in water and wastewater treatment plant systems. These ropes are used for suspending submerged equipment. They are also used in drive mechanisms for sewage collection screens. Type 316 steel with 2-3% molybdenum excels in highly corrosive environments. Type 304 steel is ideal for moderately corrosive settings. This product eliminates the need for regular lubrication. Easy maintenance and low lifecycle cost are its advantages. Engineering precision in end terminations is also critical. This product enhances operational reliability and safety.

Stanless steel wire rope

A stainless steel wire rope is a steel cable made of 304 or 316 stainless steel wires, used for load transfer, tensioning, and lifting systems in corrosive and marine environments. The number of strands typically ranges from 6 to 19, with 7 to 37 wires per strand. Overall rope diameter ranges from 1 to 50 mm, with load capacity from 200 kg to 50 tons depending on diameter and steel type. Wire tensile strength ranges from 1500 to 2200 MPa, and surface abrasion resistance reaches 2.5 N/mm².

Structurally, strands are twisted around a central steel or polyester core, providing high flexibility and tensile strength. Service life exceeds 500,000 stress cycles, and operating temperature ranges from -40 to 200°C. The surface is polished or galvanized to enhance corrosion resistance in marine environments. These specifications are optimized for cranes, hoists, conveyors, and industrial restraint systems.

Stanless steel wire rope

A stainless steel wire rope is a cable made of 304 or 316 stainless steel wires, used for load transfer, tensioning, and lifting systems in corrosive and marine environments. The number of strands typically ranges from 6 to 19, with 7 to 37 wires per strand. Overall diameter ranges from 1 to 50 mm, with load capacity from 200 kg to 50 tons depending on diameter and steel type. Wire tensile strength ranges from 1500 to 2200 MPa, and surface abrasion resistance reaches 2.5 N/mm².

Structurally, strands are twisted around a central steel or polyester core, providing high flexibility and tensile strength. Service life exceeds 500,000 stress cycles, with operating temperature from -40 to 200°C. The surface is polished or galvanized to enhance corrosion resistance in marine environments. These specifications are optimized for cranes, hoists, conveyors, and industrial restraint systems.
