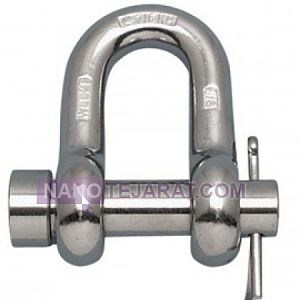

Stainless steel Shackle
The stainless steel shackle is a secure lifting connector for load handling rigging and force transfer in corrosive environments. It is manufactured from stainless steel grade 304 or 316 with tensile strength ranging from 500 to 800 MPa. Load capacity varies from 0.5 to 25 tons depending on size. The body is designed in D shape or bow shape configurations. A screw pin or safety pin ensures reliable connection. Polished or industrial matte finishes provide high corrosion resistance.
Structurally the stainless steel shackle features a forged body with uniform stress distribution. The pin is made from hardened stainless steel to reduce wear. Precision machining tolerances prevent play and stress concentration. It operates reliably in temperatures from −40°C to +300°C. The shackle is compatible with wire ropes chains and lifting slings. It is widely used in marine food pharmaceutical oil and gas industries. Stable performance ensures long term safety.
 | |
| takinboksel | 021-55422784 |
| power-boksel |
| Iran |
| -55414946-55787225-55414945 |

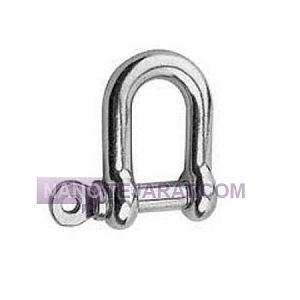

Stainless Steel Shackle
A stainless steel shackle is a mechanical connector made of 304 or 316 stainless steel, used for connecting cables, wire ropes, and chains in corrosive or marine environments. Load capacity ranges from 0.3 to 15 tons depending on body and pin diameter. Body diameter ranges from 6 to 40 mm, and pin diameter ranges from 5 to 35 mm. The surface is corrosion, oxidation, and wear resistant, with operating temperature from -40 to 200°C. Steel hardness is 35–45 HRC, and shear strength exceeds 90 percent of rated load.
Structurally, it consists of a U-shaped body and screw or locking pin for easy installation and removal. Internal width ranges from 15 to 180 mm, and manufacturing standards comply with ISO 2415 and ASTM A240 stainless steel. Stainless steel shackles are optimized for marine applications, cranes, hoists, and safety systems, and are supplied with polished or matte finish.
 | |
