The 12 mm galvanized non-rotating all-steel tower crane wire rope with 19x7 construction and a tensile strength of 1770 N/mm² is designed for industrial applications and secure tower crane connections. It consists of seven strands, each containing 19 wires, forming a compact and highly durable structure. The nominal diameter of 12 millimeters provides a tensile strength between 75 and 85 kilonewtons, making it suitable for carrying heavy tower crane loads and elevator cabins up to 1000 kilograms. The galvanized coating enhances corrosion and wear resistance, ensuring smooth and safe operation under harsh environmental conditions.
The approximate weight per meter of the 12 mm 19x7 galvanized all-steel non-rotating rope ranges from 0.60 to 0.64 kilograms and is suitable for sheaves with a minimum diameter of 450 millimeters. The WLL Working Load Limit is approximately 600 to 700 kilograms, while the MBL Maximum Breaking Load ranges from 42 to 50 kilonewtons. These specifications ensure safe, stable, and reliable performance under continuous and fluctuating loads, reducing the risk of over-tensioning and structural damage.
The outer wires are made of carbon steel with a tensile strength of 1770 N/mm², providing high resistance to pressure, wear, and fatigue under repeated lo
 | |
| Tarom-boxel | 02155429480 |
| Tarom-boxel |
| Iran |
| 02155429480 |
The 12 mm galvanized Netab wire rope with 19x7 construction and a tensile strength of 1770 N/mm² is designed for elevator applications and tower crane connections. It consists of seven strands, each containing 19 wires, forming a compact and highly durable structure. The nominal diameter of 12 millimeters provides a tensile strength between 75 and 85 kilonewtons, suitable for carrying elevator cabins up to 1000 kilograms and ensuring secure tower crane connections. The galvanized coating enhances corrosion and wear resistance, guaranteeing smooth, safe, and reliable performance in industrial and construction environments.
The approximate weight per meter of the 12 mm 19x7 galvanized Netab rope ranges from 0.60 to 0.64 kilograms and is suitable for sheaves with a minimum diameter of 450 millimeters. The WLL Working Load Limit is approximately 600 to 700 kilograms, while the MBL Maximum Breaking Load ranges from 42 to 50 kilonewtons. These specifications ensure safe and stable operation under continuous and fluctuating loads, reducing the risk of damage due to over-tensioning and providing reliable performance over time.
The outer wires are made of carbon steel with a tensile strength of 1770 N/mm², providing high resistance to wear, pressure, and fatigue under repeated loa
 | |
| Tarom-boxel | 02155429480 |
| dracoboksel |
| Iran |
| 021-55409906 |

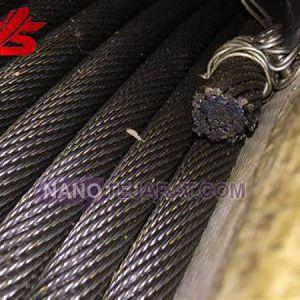

The 19 strand non-rotating wire rope is actually produced with a 19X7 structure, which is either used directly on tower cranes or used as a core for the non-rotating wire rope with a 35X7 structure. non-rotating wire rope has a stunning appearance due to the high number of strands and the low diameter of the wires used in the structure, and it is also known as snakeskin towing wire.
non-rotating wire rope is produced as 16 strands in the smallest size of 8 mm and is often used in this structure up to 24 mm in size. In higher sizes, that is, up to 36 mm, which is connected to huge tower cranes, the structure of 35 strands is often used.
 | |
