Flow Packing Machine Iran

chocolate flow packing machine

The chocolate packaging machine is an industrial device designed for weighing, forming, and packaging various types of chocolate in single, multi-piece, or bar packs. Typical production capacity ranges from 300 to 1500 packs per hour, with adjustable pack weights from 10 to 200 grams. The machine body is made of stainless steel 304, providing high resistance to moisture, fat, and food-grade safety. Electronic weighing and control systems with ±1 gram accuracy ensure precise portioning. Mechanical movement is driven by servo or electric motors of 1.5 to 3 kW, and a stainless steel or PU conveyor ensures smooth and damage-free product transfer.

Structurally, the machine includes a feeding hopper, weighing system, conveyor, forming unit, heat-sealing or pressing system, and touchscreen control panel. Packaging can be plastic film, cellophane, aluminum, or paper packaging, with molds adjustable for different pack sizes. The machine is equipped with safety sensors and emergency stop to protect the operator and product. Hygienic design, high energy efficiency, and easy cleaning make it suitable for chocolate workshops and factories.

biscuit flow packing machine

The biscuit packaging machine is an industrial device designed for weighing, forming, and packaging plain and chocolate biscuits. Typical production capacity ranges from 300 to 1500 packs per hour, with adjustable weight or quantity per pack. The machine body is made of stainless steel 304, providing high resistance to moisture, fat, and food-grade safety. Electronic weighing and control systems with ±1 gram accuracy ensure precise portioning. Mechanical movement is driven by servo or electric motors of 1.5 to 3 kW, and a stainless steel or PU conveyor ensures smooth and damage-free biscuit transfer.

Structurally, the machine includes a feeding hopper, conveyor, forming unit, heat-sealing or pressing system, and touchscreen control panel. Packaging can be plastic film, cellophane, aluminum, or metallized film, with molds adjustable for different pack sizes. The machine is equipped with safety sensors, emergency stop, and anti-contamination systems to protect the operator and product. Hygienic design, easy cleaning, and high energy efficiency make it suitable for biscuit factories and workshops.

sandwich flow packing machine

The cold sandwich packaging machine is an industrial device designed for weighing, forming, and packaging ready-to-eat cold sandwiches. Typical production capacity ranges from 200 to 1000 packs per hour, with adjustable pack weights from 100 to 400 grams. The machine body is made of stainless steel 304, providing high resistance to moisture and food-grade safety. Electronic weighing and control systems with ±1 gram accuracy ensure precise portioning. Mechanical movement is driven by servo or electric motors of 1.5 to 3 kW, and a stainless steel or PU conveyor ensures smooth and hygienic product transfer.

Structurally, the machine includes a feeding or sandwich guiding system, conveyor, packaging mold, heat-sealing or pressing unit, and touchscreen control panel. Packaging can be plastic film, cellophane, aluminum, or PET containers, with molds adjustable for different pack sizes. The machine is equipped with safety sensors and emergency stop to protect the operator and product. Hygienic design, easy cleaning, and high energy efficiency make it ideal for cold sandwich workshops and factories.

flow packing machine

The horizontal flow wrapper is constructed from 2 to 3 mm thick AISI 304 stainless steel. Standard production line dimensions are 4500 x 1800 x 2000 mm with a weight of 1200 kg. This machine operates at 20 to 400 packages per minute for product lengths of 50 to 400 mm. Main servo motors of 3 to 5.5 kW provide positioning accuracy of ±0.2 mm. The continuous sealing system operates at controlled temperatures of 100 to 300°C with ±1.5°C tolerance. Electrical power consumption ranges from 10 to 25 kW per hour.

The mechanical structure includes nickel-plated carbon steel conveyors and precision linear rail systems. The cutting unit uses rotary high-speed steel blades with titanium nitride coating for 1500-hour lifespan. The control system utilizes a PLC with dedicated motion modules and a 12-inch touchscreen HMI. The film feeding system supports rolls up to 500 mm in diameter and 550 mm in width. High-speed photoelectric sensors with 0.5 ms response time track product positioning. A forced cooling unit with industrial blowers stabilizes seal temperature in under 3 seconds.

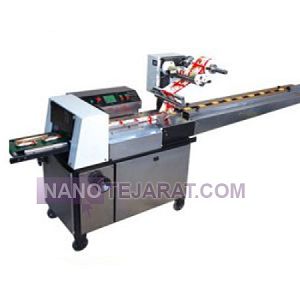

wafer flow packing machine

The wafer packaging machine is an industrial device designed for weighing, forming, and packaging chocolate and plain wafers. Typical production capacity ranges from 300 to 1200 packs per hour, with adjustable weight or length per pack. The machine body is made of stainless steel 304, providing high resistance to moisture, fat, and food-grade safety. Electronic weighing and control systems with ±1 gram accuracy ensure precise portioning. Mechanical movement is driven by servo or electric motors of 1.5 to 3 kW, and a stainless steel or PU conveyor ensures smooth and damage-free wafer transfer.

Structurally, the machine includes a feeding hopper, conveyor, forming system, heat-sealing or pressing unit, and touchscreen control panel. Packaging can be plastic film, cellophane, aluminum, or metallized film, with molds adjustable for different pack sizes. The machine is equipped with safety sensors and emergency stop to protect the operator and product. Hygienic design, high energy efficiency, and easy cleaning make it suitable for wafer factories and workshops.

flow packing machine

The bridal flower stem packaging machine is made from 6061 aluminum alloy with a hard anodized coating. It measures 1800 x 800 x 1500 mm with adjustable working height from 700 to 1100 mm. The system operates at 15 to 25 packages per minute using a 1.8-degree stepper motor. It runs on a single-phase 220V, 50Hz power supply with a maximum consumption of 1.5 kW. A heating unit with adjustable temperature from 80 to 150°C is used for film sealing.

The feeding mechanism uses rolls of transparent polyethylene film, 400 mm wide and 30 microns thick. Stem-holding clamps are adjustable for diameters ranging from 5 to 30 mm. The thermal cutting system is equipped with a chrome-nickel blade 450 mm long. Infrared sensors with 0.2 mm precision detect flower placement. A silicone-coated worktable prevents product damage. A built-in 5-liter water reservoir maintains stem humidity during packaging.
