Excavating wire rope

Import, production and sale of drilling wire
Sale of oil well drilling tow wire
Sale of water well drilling tow wire
Sale of round left drilling tow wire
Sale of tow wire 22 left round
Sale of tow wire 24 left round
Sale of 6*19 hemp wire
Sale of 6x19 drilling wire
Sale of tow wire for drilling hemp seeds
Sale of round left hemp seed tow wire

What is a drill string?

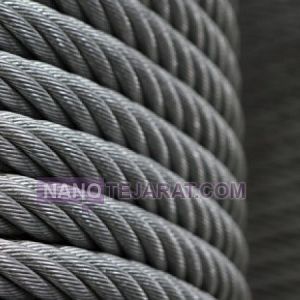

The main structure used in steel rope or towing wire in oil and water well drilling operations is in the form of 6 strands, each of these 6 strands consists of 19 steel wires twisted together. Strands are spun around a core, which can be made of steel, natural hemp, or PP polymer fibers. Weaving these 19 strands of wire next to each other in such a way that the final tow wire is ready to be used in drilling operations, it can be in the form of a standard weave or a flood weave, which we will discuss in the following explanations.

What are the common structures in drilling wire rope?

Towing wire with standard structure:
The structure called "standard" is based on wires with the same diameter in each strand. Probably the most common example is a steel wire in the middle surrounded by six wires of the same diameter.
A string of 7 strings written face to face: 1-6

Tow wire with Seale seal structure

Excavating wire rope

Import, production and distribution of drilling wire in Kariz industrial equipment.
Sale of 22 left towing wire
Sale of 24 left towing wire
Sale of oil well drilling tow wire
Sale of water well drilling tow wire
Sale of round left drilling tow wire

22 mm and 24 mm grade wire ropes, which are available with flood and standard structures and have NFC hemp core or SFC polymer fibers, are mainly used in deep well drilling. The direction of circulation of steel strands is usually to the left, which is called left-handed. Of course, depending on the customers needs, it is also possible to provide right-handed towing wire.

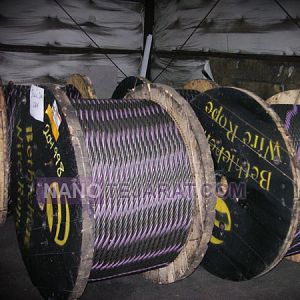

22 and 24 wire ropes are mainly sold in 300 and 1000 meter wooden spools, however, this collection can be sent with the desired length from one meter to several thousand meters.
The shipping method is that after receiving the official order and completing the financial affairs, the goods are delivered to the customers request either at the warehouse in Tehran, or to send to the cities, to reliable carriers or intercity terminals, including A bus or a ride will be sent according to the customers request.
Kariz industrial equipment:
Kariz industrial equipment, which has placed transparency, quality, raising the level of technical information and preserving t

Excavating wire rope

Drilling industry wire rope is a critical component for power transmission and heavy load handling in oil, gas, and mining drilling operations. It is made from carbon or alloy steel with tensile strength ranging from 1570 to 1960 N/mm². Wire diameters typically range from 16 to 48 millimeters, with 6x19, 6x37, or 8x19 constructions chosen to enhance flexibility and fatigue resistance. Coatings include hot-dip galvanized or bare steel, with standard safety factors from 5:1 to 7:1. Uniform tension and twisting prevent localized stress and extend service life.

Structurally, the drilling wire rope consists of steel strands twisted around a steel or fiber core, providing radial strength and wear and corrosion resistance. The braided wires are precisely designed in a helical pattern to improve fatigue and kink resistance. Standard rope lengths range from 50 to 200 meters, with operational temperatures from −40°C to +250°C. It is widely used in winches, drilling rigs, and industrial load handling equipment, ensuring reliable performance under harsh environmental conditions.

Excavating wire rope

Drilling wire rope is a critical component in the oil, gas, and mining industries, designed for force transmission and heavy load handling in drilling equipment. It is made of carbon or alloy steel with tensile strength between 1570 and 1960 N/mm². Wire diameters typically range from 16 to 48 mm, and constructions such as 6x19, 6x37, or 8x19 are used to enhance flexibility and fatigue resistance. Coatings may include hot-dip galvanization or bare steel, with safety factors of 5:1 to 7:1. Helically twisted strands ensure uniform stress distribution and extend service life.

Structurally, the drilling wire rope consists of steel strands twisted around a steel or fiber core, providing radial strength and high abrasion resistance. Standard rope lengths range from 50 to 200 meters and can operate in temperatures from −40°C to +250°C. It is suitable for use in winches, drilling drums, and industrial lifting equipment, ensuring stable and safe operation under harsh environmental conditions.

dia 10 kiswire excavating wire rope

Excavating wire rope with 6 strands of 10 mm size requires high quality specifications, which tensile strength, abrasion resistance and flexibility are considered to be the most important of them. Excavating wire rope with 6X19 structure is produced both with standard weave, where the diameter of the wires of each strand is equal, and with flood weave, where different diameters of wire are used in each layer of strand. KISWIRE is one of the most well-known global brands that produce drilling wire, especially in 10 mm size. The use of special thermal hardening process in the production of case wire drilling wire makes the abrasion and tensile resistance of this brands product very high and suitable for sensitive applications even under high temperature.

galvanized excavating wire rope

In the oil industry and on drilling rigs, wire ropes with a special structure are used. Drilling towing wire is often used in the 6-strand type, which is made of steel wires with a larger diameter than the wires used in the elevator industry or on towers. excavating wire is used from size 8 mm and above, but it has the maximum amount of use in size 10 mm.
excavating wire rope is used in smaller sizes with a steel core, which has a 6X19 structure and is supplied with the extension IWRC. In larger sizes, the drill string is often used with hemp core, which is used with the suffix FC, which stands for Fiber core.

excavating wire rope IWRC

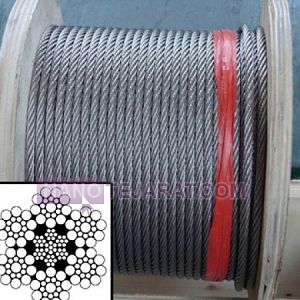

6-strand wire ropes are produced with a very high variety and are used in drilling connections, cranes and in the production of slings. The steel core drilling wire that is produced with 6X19+IWRC structure is produced with a standard weave such that the diameter of all its wires is the same. Meanwhile, the 6X19S+IWRC structure is produced from drilling tow wire like the previous structure with a steel core, but with a SEALE type texture that uses two different wire diameters.
Among the technical factors of drilling wire rope, abrasion resistance is often more important.

kiswire excavating wire rope

Excavating wire rope is often used as 6 strands on drilling rigs. Drilling towing wire is produced from size 8 mm and above and is used both as hemp core and as steel core. Hemp core drilling wire has lower tensile strength but higher flexibility than steel cores and is used with FC extension, i.e. 6X19+FC complete structure. Meanwhile, the drilling tow wire with steel core has more weight per unit length, higher price and less flexibility, and it is used with the extension IWRC, that is, with the complete structure of 6X19+IWRC.
