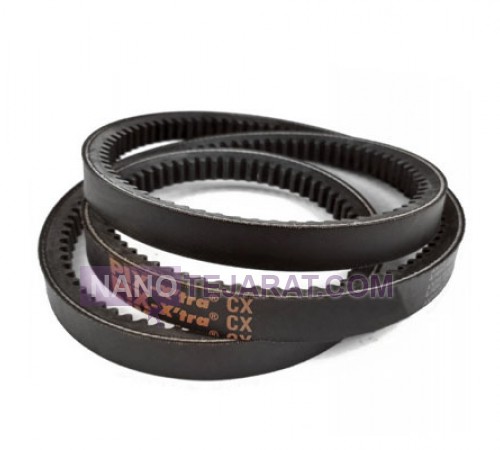

CX150 V-Belt

The CX150 V-belt is designed in a V-shape for power transmission in industrial and agricultural machinery. The belt width is 150 mm with a thickness of 12 mm, capable of transmitting up to 45 kW at speeds of 1000 to 3000 RPM. The belt is made of a durable polymer reinforced with polyester cords, ensuring high tensile strength and wear resistance. Its high friction coefficient reduces slippage and increases system efficiency. Recommended operating temperature ranges from -30 to 80°C, and the oil- and heat-resistant coating extends the belt’s service life.

The precise dimensions and specifications of the CX150 V-belt include an effective length of 2000 mm, a standard V-angle of 40 degrees, and a 2 mm protective coating thickness. The belt is suitable for pulleys with diameters of 100 to 400 mm and offers easy installation and low maintenance. Its flexible design applies uniform pressure on pulleys, enabling vibration-free power transmission. The chemical and thermal resistance of the CX150 allows operation in environments with oil, dust, and varying temperatures, optimizing equipment lifespan.
