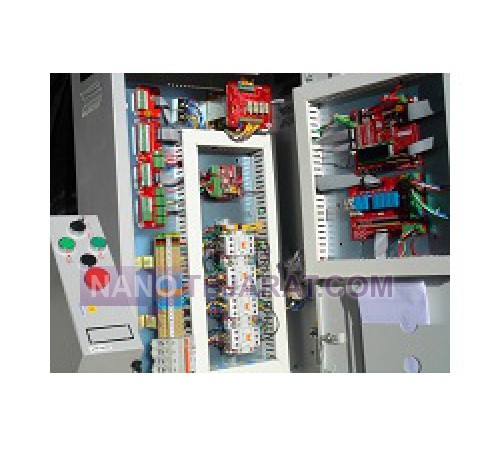

elevator control panel , Iran
An elevator control panel is an intelligent control unit designed to manage motion, smooth acceleration, soft stopping, and safety circuit supervision. Standard input voltage is 380 to 400 volts AC three phase with 24 volts DC control supply. Variable frequency drive power typically ranges from 7.5 to 90 kilowatts with efficiency above 95 percent. Rated inverter output current is designed between 20 and 200 amperes. Speed control is achieved through closed loop vector algorithms using encoder feedback from 1024 to 2048 pulses per revolution. Cabin stopping accuracy under rated load is maintained within ±1.5 millimeters.
The structure includes a 32 bit processor based main board operating at 120 to 300 megahertz, an IGBT drive module, and dual safety contactors. Metal enclosure protection ranges from IP20 to IP54 with sheet thickness between 1.5 and 2 millimeters. Insulation resistance between power circuits and chassis exceeds 100 megaohms at 1000 volts DC testing. Protective features include overcurrent, short circuit, phase loss, encoder fault, and motor overtemperature detection. Operating temperature range is defined from minus 10 to plus 55 degrees Celsius. Quality validation includes full functional testing, static load trials, and electromagnetic compatibility EMC assessment.You can order and buy elevator control panel from Iran by contacting us through whatsaap and email.
WEBSITE: elevator control panel Iran
Periodic Maintenance and Service of Elevator Control Panel in iran
Periodic maintenance of an elevator control panel must follow EN 13015 and manufacturer guidelines to maintain system reliability above 99.5 percent. Monthly inspections include monitoring internal panel temperature between 10 and 40 degrees Celsius and measuring phase current imbalance below 5 percent. Power terminal torque tightening and inspection for arc marks or busbar discoloration are required. Electronic boards are cleaned using dry compressed air and DC link capacitors are checked for swelling or capacitance drop. Grounding resistance must remain below 2 ohms and annual insulation testing at 1000 VDC should be recorded. Drive parameters including acceleration, deceleration, and braking current are reviewed and fault logs are analyzed. Finally, no load and rated load functional tests verify proper safety circuit response.
