PC Strand 0.5

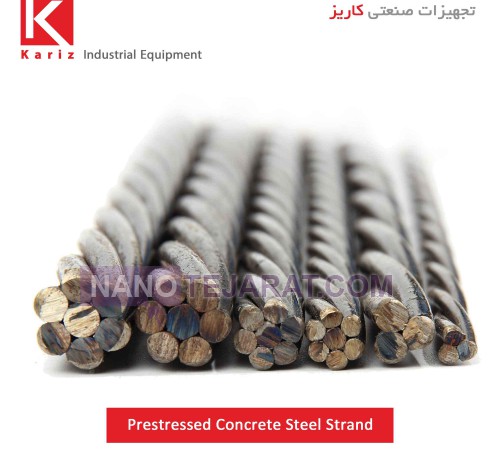

Production and supply of prestressed concrete PC Strand: Prestressed Concrete Steel Strand in Kariz industrial equipment.

Prestressed concrete strand, size 3.8 inches
0.5 inch prestressed concrete strand
0.6 inch prestressed concrete strand
Production and supply of necessary nailing and pre-tensioning operations, including:
- Anchorage Anchorage
- Finger Wedge
- Angle washer
- Injection hose
- Hose sheath
- Star Spacer - Solar Spacer

In order to make the prestressed concrete strand, the wire rod with 82B grade, which is high in carbon, is pulled through special steps and special conditions to reach the desired wire. Then these wires are woven around a central wire to form a strand. At the end, the prepared strand is entered into the heat treatment stage so that the stresses created in the steel particles during the previous steps are removed from it, so that it achieves a higher tensile capacity in this product.
Prestressed concrete strand is manufactured according to the ASTM A-416 standard American Society for Testing and Materials, and each production, inspection, and post-production testing process is carried out according to this regulation.
The desired tensile strength in this type of steel strand is 1860 N/mm2 equivalent to 270 K.
Concrete strand is usually made in the form of 6 strands of wire that are spun around a core wire with a 1x7 structure. Of course, in some cases it is also produced and consumed as 1x3.
The main sizes of this product are as follows, and below we briefly mention the use of each.
Prestressed concrete strand, size 3.8 inches
0.5 inch prestressed concrete strand
0.6 inch prestressed concrete strand

Prestressed concrete strand, size 3.8 inches
This type of strand is mostly used for the construction of prestressed concrete traverses in railway lines.

0.5 inch prestressed concrete strand
This size of pre-tensioned strand is mainly produced and used for the construction of pre-tensioned roofs in the form of pre-stretched and post-stretched, coated and uncoated.

0.6 inch prestressed concrete strand
Strand size 0.6" is a very suitable option for stabilizing urban pits in the form of nailing and anchoring and earthen trenches. It is also widely used in the construction of pre-tensioned box bridges as a tensile element.
