elevator , Iran

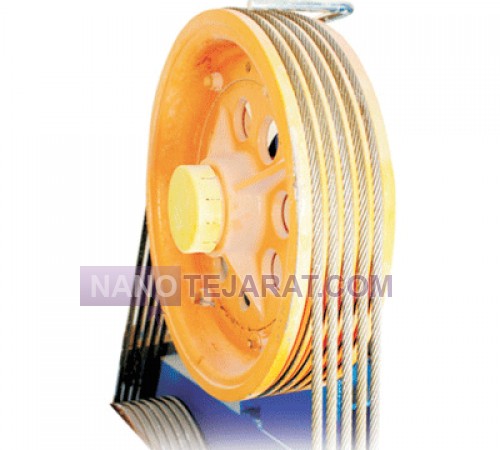

A traction elevator operates by transmitting force through friction between steel ropes and the traction sheave. Motor power typically ranges from 5 to 55 kilowatts with system efficiency above 85 percent. Nominal cabin speed varies from 0.63 to 6 meters per second depending on building height. Load capacity generally ranges from 320 to 2500 kilograms with a minimum rope safety factor of 12. Traction sheave diameter is selected between 320 and 1000 millimeters to minimize slip. The control system is based on VVVF drive technology, ensuring stopping accuracy within ±3 to ±5 millimeters.
The structural configuration includes a geared or gearless motor, traction sheave, counterweight frame, and guide rails. The counterweight ratio is typically designed at 40 to 50 percent of rated load plus cabin mass. Travel height may range from 10 to more than 300 meters. Nominal acceleration is usually adjusted between 0.8 and 1.2 meters per second squared. The electromagnetic brake is designed to hold 125 percent of rated load. Safety requirements include an overspeed governor and safety gear compliant with EN 81 standards.You can order and buy elevator from Iran by contacting us through whatsaap and email.
WEBSITE: elevator Iran
Key Considerations Before Purchasing a Traction Elevator in iran
Before purchasing a traction elevator, the rated capacity must be calculated according to user volume and building traffic factor. Suitable speed ranges from 1 to 1.6 meters per second for residential buildings and up to 2.5 meters per second for office use. The choice between gearless and geared motors should consider efficiency above 85 percent and noise levels below 60 decibels. Wire ropes must provide a minimum safety factor of 12 and match the traction sheave diameter. A VVVF control panel can reduce energy consumption by up to 30 percent while ensuring smoother cabin movement. Full compliance with EN 81-20 and valid inspection certification is mandatory. Machine room space or machine room less requirements, headroom, and pit depth must be verified before contract signing. After sales service and spare part availability should be guaranteed for at least 10 years.
