- Price :negotiated
concrete pump , Iran

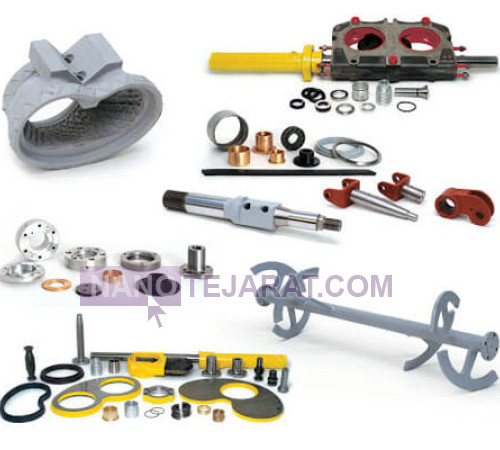

Concrete pump spare parts include delivery cylinders, rubber pistons, shut off valves, transfer pipes, and high pressure elbows operating at working pressures of 80 to 130 bar. Cylinders are typically manufactured from 42CrMo4 alloy steel with induction heat treatment and surface hardness of 58 to 62 HRC. Delivery pipes are produced from wear resistant steel with 4 to 10 mm thickness and tensile strength above 900 MPa. Machining tolerance of critical components is limited to ±0.02 mm to restrict leakage and pressure loss below 3 percent. Pistons are made of reinforced polyurethane with abrasion resistance above 30 mm3 according to ASTM D5963. All components comply with DIN 2391 and ISO 9001 quality control and hydrostatic testing requirements.
In structural design, fatigue resistance is considered for more than 500000 working cycles at flow rates between 60 and 180 cubic meters per hour. Flange and clamp connections withstand pressure shocks up to 1.5 times nominal pressure. Internal pipe lining hardness of 60 HRC increases service life up to 30000 cubic meters of pumped concrete. Sealing is ensured by NBR or FKM rings within temperature range of minus 20 to 120 degrees Celsius. A minimum safety factor of 2.0 against yield stress is applied. Ultrasonic testing and metallurgical analysis verify martensitic microstructure and prevent microcracks.You can order and buy concrete pump from Iran by contacting us through whatsaap and email.
WEBSITE: concrete pump Iran
Original and High Quality Concrete Pump Parts Buying Guide in iran
When selecting original concrete pump parts, first verify the machine technical specifications including working pressure up to 200 bar, output flow rate in cubic meters per hour, and delivery cylinder diameter. Wear components such as delivery pipes, elbows, and spectacle plates must have hardness above 58 HRC and comply with DIN wear resistance standards. Pipe wall thickness should not be less than 4.5 millimeters and dimensional tolerances must follow ISO 2768. The part number must exactly match the manufacturer manual and machine serial number. Purchase only from suppliers providing material analysis certificates and hydrostatic test reports. Genuine parts include casting numbers, industrial packaging, and traceable barcodes. Nominal service life in operating hours and life cycle cost ratio should be the final engineering decision criteria.
