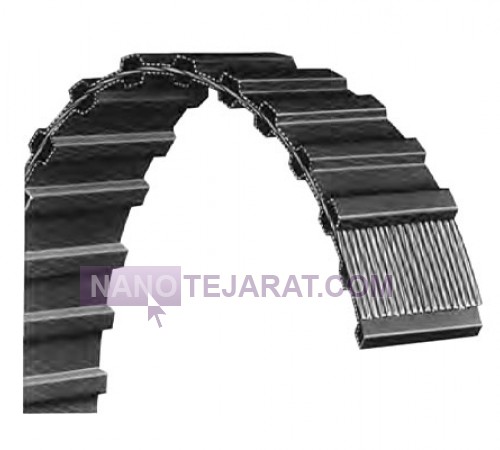

The Bando DH timing belt is made of neoprene rubber reinforced with glass fiber and polyester cords, providing high tensile strength and excellent dimensional stability. The belt teeth are designed with a pitch ranging from 8 to 14 millimeters to ensure precise and uniform power transmission. Its tensile strength is measured between 90 and 120 newtons per millimeter of belt width, with a surface friction coefficient of approximately 0.3. The operating temperature range is from -20 to +100 degrees Celsius, and heat-resistant models can operate effectively up to 120 degrees.
A key feature of the Bando DH timing belt is its high positional accuracy and stable performance at high speeds. It can handle rotational speeds up to 10,000 revolutions per minute, with widths ranging from 10 to 50 millimeters. Standard belt lengths are produced between 200 and 2000 millimeters, and the tooth design reduces vibration and noise to less than 70 decibels. These characteristics make the Bando DH timing belt ideal for high-efficiency industrial machinery requiring precise power transmission.
