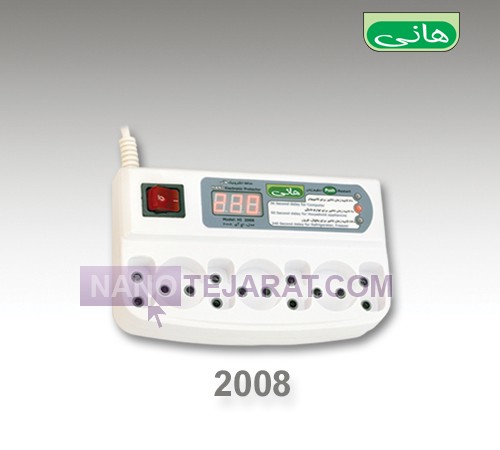

Digital 2008 Electronic Protector , Iran
- Price :To negotiate
- order by whatsapp
The Model 2008 digital protector is designed against voltage surges up to 6 kV and transient spikes with 1 ns response time. It utilizes a high-energy MOV up to 400 joules per phase and a Gas Discharge Tube GDT. The operating voltage range is 170 to 275 V AC at 50/60 Hz. The rated current is 16 Amperes with a short-circuit withstand up to 10 kA. An LED digital display shows real-time line voltage with ±2 volts accuracy. This protector features a three-status indicator light for normal, warning, and fault conditions. Its thermal overload protection fuse activates at 120°C. Common Mode Rejection Ratio CMRR exceeds 60 dB at 1 MHz frequency. The MOVs service life under standard conditions is over 1000 surge events.
The internal structure includes a 16A fast-acting ceramic fuse and a two-stage LC filter circuit. These filters attenuate RFI/EMI noise between 150 kHz and 30 MHz by up to 85%. Output ports consist of 8 standard sockets with 42 mm center-to-center spacing. The housing is made of impact-resistant polycarbonate UL94 V-0 with 10 Joules impact resistance. Device dimensions are 250x100x40 mm, weighing 450 grams. The power cable is 1.8 meters long with a 1.5 mm² cross-section, triple-core PVC sheathed. Safety certifications include UL 1449 4th Edition, CE, and RoHS. The unit features a physical on/off switch with a mechanical life exceeding 10,000 cycles. Permitted operating conditions are 0 to 40°C temperature and up to 85% relative humidity.You can order and buy Digital 2008 Electronic Protector from Iran by contacting us through whatsaap and email.
WEBSITE: Digital 2008 Electronic Protector Iran
Types of Digital Power Protectors
Digital power protectors are categorized into two main types: Surge Protectors and Voltage Regulators/Stabilizers. Digital surge protectors use advanced Metal Oxide Varistors MOVs to suppress instantaneous high voltages lightning, switching surges within milliseconds. This type is essential for protecting sensitive equipment such as servers, surveillance systems, and medical devices. Digital voltage regulators utilize PID algorithms and tap-changing transformers to convert unstable input voltage e.g., 160 to 250 volts into a stable output 220 volts ±3%. This type is used for industrial equipment, laboratories, and data centers that require stable voltage. Some hybrid models offer both functionalities. Selecting the appropriate type depends on local grid specifications, device sensitivity, and budget.
