- Price :negotiated
Ring , Iran
- Price :To negotiate
- order by whatsapp

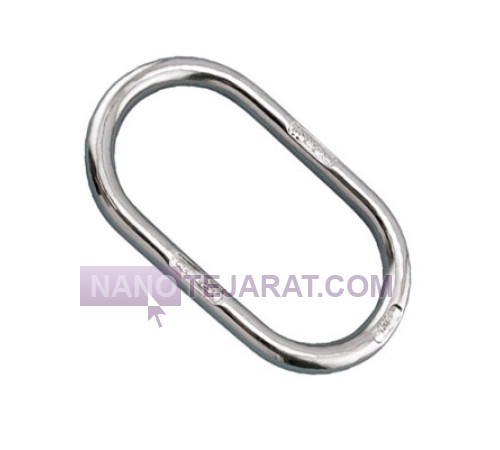

Steel shackles are closed, ring-shaped connecting components. They are manufactured from high-strength forged steel. These shackles are specifically designed to create termination points in wire rope slings. The diameter of the steel wire forming the shackle varies from 6 to 32 mm based on capacity. Their nominal load capacity is classified from 1 to 50 tons per EN 13889:2003 standard. The minimum tensile strength of the base material is 1600 MPa. The two wire rope ends are joined by compression using a zinc-based alloy. The length of the compressed sleeve is at least 3 times the rope diameter.
These swivel-type shackles incorporate a ball or roller bearing mechanism. This allows for 360-degree free rotation under load. This feature prevents sling twisting and load damage. The design safety factor is a minimum of 5 to 1. The shackles undergo certified load testing at twice their working load limit. They are often supplied with a hot-dip galvanized coating for corrosion resistance. The operating temperature tolerance ranges from -40°C to +200°C. Regular inspection for wear, deformation, and bearing lubrication is mandatory.You can order and buy Ring from Iran by contacting us through whatsaap and email.
WEBSITE: Ring Iran
Complete Guide to Types of Rings and Their Industrial Applications
Rings are produced in shapes such as round, oval, D-shape, and triangular delta. Round rings are suitable for axial connections and multi-directional loads. Oval rings are used in rigging systems and chain connections capable of handling heavy loads. D-rings, due to their fixed shape and resistance to unilateral tensile loads, are common in lifting and transportation industries. Triangular delta rings are used for three-way connections and even load distribution. Their material is chosen from carbon steel, alloy steel, stainless steel, or bronze depending on the working environment. Key applications include crane connections, marine mooring systems, climbing equipment, and the aerospace industry. The type of ring should be selected based on load direction, required capacity, and safety standards such as ASME B30.26. Visual inspection and wear measurement are critical for maintaining safety.
