0.8 Ton wire rope Tirfur , Iran
- Price :To negotiate
- order by whatsapp

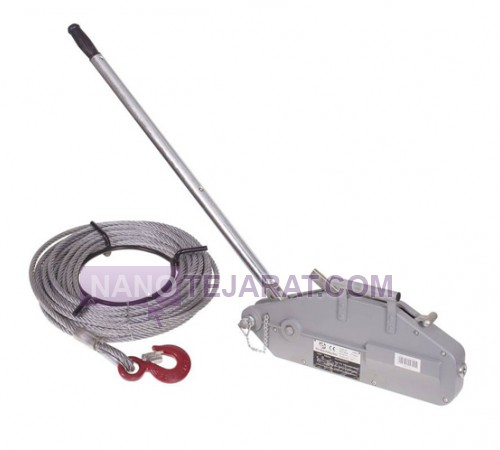

This 0.8 ton cable lever hoist is a tool for pulling, lifting, and tensioning loads. It has a nominal pulling capacity of 800 kg or 7.8 kN. The main cable is galvanized steel with a 6 by 7 construction and 8 mm diameter. The cables minimum tensile strength is 1770 N/mm². The pawl mechanism is made from hardened steel with anti-corrosion coating. This mechanism provides automatic locking in any position. The standard cable length is 15 meters. The unit weight is approximately 7 kg. It is suitable for operating temperatures from -40°C to +100°C.
The cable grips are forged steel with a specialized tread pattern. These grips prevent cable slippage. The overall design safety factor is 4 to 1. Its collapsed dimensions are typically about 35 by 15 cm. The handles feature an ergonomic polymer coating for secure grip. This hoist is ideal for horizontal and inclined pulling in construction. It requires regular cable inspection for signs of wear or premature fraying. Periodic lubrication of the levers and locking mechanism is essential.You can order and buy 0.8 Ton wire rope Tirfur from Iran by contacting us through whatsaap and email.
WEBSITE: 0.8 Ton wire rope Tirfur Iran
Types of Chain Shackle Heads: Plain and Shouldered
The plain shackle head is designed for direct and fixed connection to the load or anchor point. This type typically has higher strength and a simpler structure. Its primary application is in permanent or semi-permanent connections such as securing metal structures, bridges, and power transmission lines. The shouldered anchor shackle head features a swivel joint that allows automatic alignment with the direction of pull. This design prevents stress concentration and chain fatigue. It is used in dynamic connections, suspension systems, and environments with changing load directions. The choice between these two types depends on the connection type, load angle, and need for movement. Both types must be made of alloy steel with an appropriate grade such as Grade 80 and comply with ASME B30.26 or EN 1677 standards.
