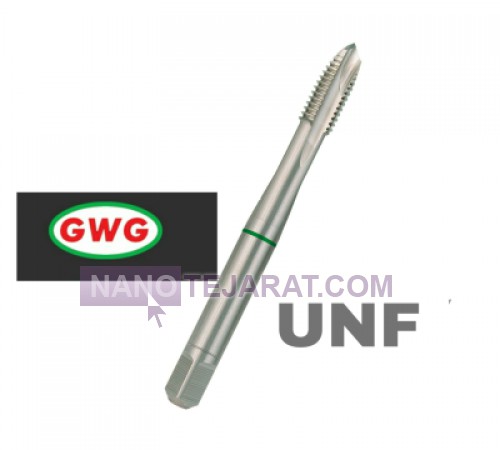

TAPS MACHINE 3/16 UNF

The 3/16 UNF machine tap is a precise tool designed for creating Unified Fine UNF threads with a nominal diameter of 4.76 millimeters and a pitch of 24 threads per inch. This tap is designed according to the ANSI/ASME B1.1 standard and features a 60-degree thread angle, providing high strength and accuracy in connections. The tool is made from high-speed steel HSS coated with TiN, offering significant wear and heat resistance. The overall length ranges between 40 to 55 millimeters, and the shank conforms to DIN 376 standards for easy and secure mounting on CNC machines and drills. This tool can produce threads with a tolerance class of 6H and is widely used in automotive, electronics, and precision equipment industries.

The 60-degree thread angle in the 3/16 UNF machine tap ensures uniform pressure distribution and increased mechanical strength of the connection. The recommended cutting speed varies from 10 to 18 meters per minute, and oil-based lubricants improve tool performance. The tooth geometry reduces cutting forces and facilitates easy chip removal. These features enhance thread quality and tool durability during threading operations on soft to semi-hard metals.
