HAND TAPS 7/16 BSW

• Brand : KOHLER | VOLKEL | ZEBR | FRA | HONGDA | ADOLAN | کوهلر | ولکل | زبرا | فرا | هونگدا | ادولان
• Application : قلاویز دستی اینچی BSW برای رزوه کردن استفاده میشو
• Type : قلاویز دستی اینچی BSW

The 7/16 inch BSW hand tap is designed according to the British Standard BS 84 and features a thread pitch of 14 TPI Threads Per Inch. The thread angle is 55 degrees, and the nominal external diameter measures 11.11 millimeters. This tap is typically made from high-speed steel HSS or hardened alloy steel with a surface hardness between 58 and 62 HRC. The overall length ranges from 70 to 90 millimeters, and the shank diameter is approximately 6 to 8 millimeters. It is suitable for producing precise threads in steel, aluminum, and brass components with medium wall thickness.

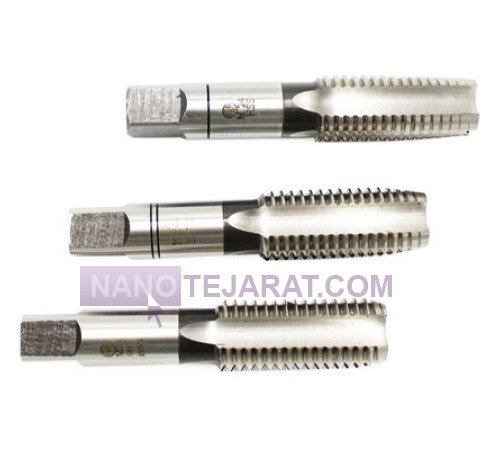

The 7/16 BSW hand tap is commonly available as a three-piece set including taper, intermediate, and bottoming taps for progressive and accurate thread cutting. The resulting thread accuracy complies with class 2B under the BSW standard and is suitable for low to medium-pressure connections. Its straight or spiral flutes help remove chips and reduce jamming during operation. When used manually, a rotation speed of under 30 RPM is recommended. Applying a medium-viscosity tapping oil increases tool life and reduces cutting stress on the thread surface.
