hyundai excavator 210 swing pump M2X146 , Iran

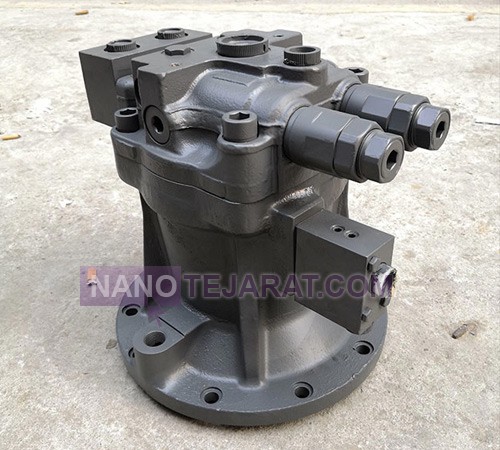

The swing pump of the Hyundai 210 excavator, Kawasaki M2X146 model, is an axial piston motor with a swash plate design, engineered for the rotational movement of the excavator’s swing arm. This pump has a displacement of 145.7 cm³ per revolution, a nominal operating pressure of 30 MPa, and a maximum pressure of 37 MPa. Its maximum flow rate reaches 210 liters per minute, and rotational speed is up to 1650 rpm. These specifications enable the pump to deliver a torque of 12,800 Nm while ensuring precise control of the swing movement. The swash plate design and precise pressure and flow control maintain hydraulic system efficiency even under heavy operating conditions.

During repair, the pump is first removed from the hydraulic system and thoroughly cleaned to eliminate any suspended particles or contaminants. The cylinder block, drive shaft, swash plate, pressure plates, and springs are inspected using precision tools such as micrometers and gauges. O-rings, seals, and other consumable components are replaced, and friction surfaces are carefully refurbished. Pump pressure and flow are tested after repair to ensure performance meets factory standards, with no leakage or power loss.

After replacing and repairing damaged components, the pump is reassembled with precise torque application and proper alignment. It is tested on a hydraulic test bench under 30 to 37 MPa pressure and 50°C oil temperature. Vibration, noise, oil flow, and output torque are measured and compared with factory specifications. Any deviations are corrected, and the pump is then ready for reinstallation in the excavator swing system. This process extends pump service life and ensures hydraulic efficiency up to 95 percent of factory standards.
You can order and buy hyundai excavator 210 swing pump M2X146 from Iran by contacting us through whatsaap and email.
