KAWASAKI M5X130 pump repair

• Brand : کاوازاکی
• Made in : ژاپن
• Machinery : بیل مکانیکی هیوندا 210
• Part Number : M5X130

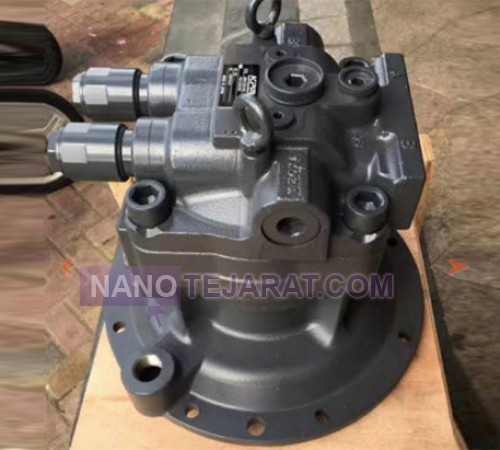

Hydraulic travel pumps for the Hyundai 210 excavator, Kawasaki models M5X180 and M5X130, are axial piston motors with swash plate design. These motors are engineered for precise and stable rotational performance in excavators. The M5X180 model has a displacement of 180.1 cm³ per revolution, nominal pressure of 32.4 MPa, maximum pressure of 39.2 MPa, maximum speed of 1680 rpm, maximum flow of 240 liters per minute, and maximum torque of 16,500 Nm. The M5X130 model has a displacement of 129.2 cm³ per revolution, similar nominal and maximum pressures, maximum speed of 1850 rpm, maximum flow of 240 liters per minute, and maximum torque of 13,400 Nm.

During repair, the pump must first be removed from the system and all components carefully inspected. Parts such as the cylinder block, swash plate, drive shaft, spring plate, pressure plate, separator plate, friction plate, and O-ring kit should be examined and replaced if necessary. Using original or high-quality components is essential to maintain motor performance and longevity.

When reassembling, all components must be installed with precision using accurate measurement and adjustment tools. After assembly, the motor should undergo performance testing to ensure that technical specifications such as pressure, flow, and torque are within standard ranges. These procedures enhance operational efficiency and reduce the likelihood of future failures.
