- Price :negotiated
Forming Springs , Iran
- Price :To negotiate
- order by whatsapp

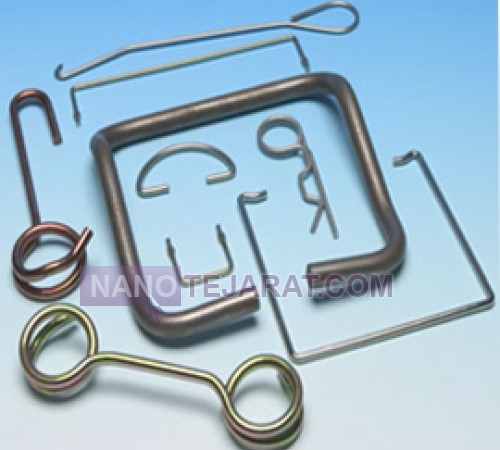

A wire forming spring is a three dimensional elastic component manufactured by precision bending of carbon steel, alloy steel, or stainless steel wire. Wire diameter typically ranges from 0.5 to 14 millimeters with tolerances between ±0.02 and ±0.08 millimeters. Ultimate tensile strength varies from 900 to 2000 megapascals depending on alloy grade. Minimum bending radius is generally selected between 1.5 and 3 times the wire diameter to reduce stress concentration. The modulus of elasticity of steel is about 200 gigapascals and shear modulus is 79 gigapascals. Stress relief heat treatment is performed between 250 and 450 degrees Celsius.
The structural design is based on bending and torsional stress analysis with safety factors between 1.5 and 2.5. Dimensional accuracy can reach ±0.1 millimeter with angular tolerance below ±1 degree. Load capacity varies between 10 and 3000 newtons depending on geometry. Surface finishing includes galvanizing, phosphating, or powder coating with thickness from 8 to 25 microns. Fatigue life within 10^5 to 10^7 cycles is achieved by maintaining stress concentration factor below 1.8. Quality control includes static load testing, fatigue evaluation, and three dimensional inspection using CMM systems.You can order and buy Forming Springs from Iran by contacting us through whatsaap and email.
WEBSITE: Forming Springs Iran
Forming Spring Purchase Guide in iran
When purchasing forming springs or wire forming springs, the initial step involves a precise analysis of mechanical parameters based on standards such as DIN 2192 and ISO 10243 . Calculating the maximum bending stress and spring rate according to the materials elastic modulus and cross-sectional geometry typically rectangular or round is essential . Dimensional accuracy is critical for example, the dimensional tolerances for coiled compression springs are typically in the range of ±0.030 inches, which must be coordinated with the installation space . Material selection is dictated by operational conditions, such as temperatures exceeding 340°C requiring Inconel superalloys or corrosive environments requiring 316 stainless steel . For high-cycle applications millions of cycles, using chrome-vanadium grades with shot peening treatments is mandatory to enhance fatigue resistance . Finally, adhering to the 20-80 rule for spring deflection installing at 20% and operating up to 80% of maximum deflection ensures the mechanical longevity of the assembly .
