- Price :negotiated

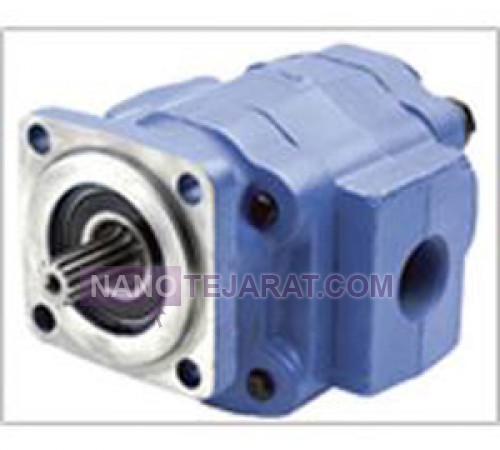

Hydraulic pump , Iran
A hydraulic gear pump is a positive displacement pump that transfers fluid by the meshing of two coaxial gears. Typical working pressure ranges from 100 to 250 bar, with flow rates from 1 to 150 liters per minute. Shaft speed is designed between 500 and 3000 revolutions per minute. Volumetric efficiency above 90 percent ensures uniform fluid delivery. The housing is made from alloy cast iron or hardened aluminum. The input shaft is steel with hard coating for high wear resistance.
Structurally, the pump includes precision ground steel gears with tight tolerances. Plain or needle bearings provide service life exceeding 10000 hours. NBR or Viton seals remain stable from minus 20 to plus 120 degrees Celsius. Inlet and outlet ports are threaded according to SAE or BSP standards. It operates with mineral oils and industrial hydraulic fluids. Operating noise below 70 decibels enables safe use. These specifications are optimized for industrial machinery and hydraulic power systems.You can order and buy Hydraulic pump from Iran by contacting us through whatsaap and email.
WEBSITE: Hydraulic pump Iran
Installation and Start Up of a Hydraulic Gear Pump
To install a hydraulic gear pump, first ensure the base is level and the motor and pump shafts are aligned within ±0.05 mm accuracy. The mounting area must be clean, vibration free, and well ventilated. Before start up, check the suction line for leaks or blockage and install a filter with at least 25 micron rating. Fill with hydraulic oil according to ISO VG standard and cleanliness class 18/16/13. During initial start, run the pump at low speed and without load for proper air bleeding. Monitoring pressure, oil temperature, and abnormal noise in the first hours prevents early failure.
