- Price :negotiated

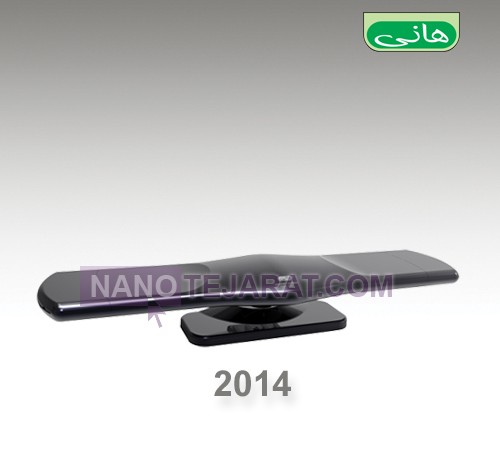

Desktop 2014 Antenna , Iran
- Price :To negotiate
- order by whatsapp
The Model 2014 tabletop antenna fully supports UHF 470-862 MHz and VHF 174-230 MHz frequency bands. Its gain is optimized between 12 and 18 decibels. The standard input impedance is 75 ohms using RG6 coaxial cable. Voltage Standing Wave Ratio VSWR remains below 1.5 across the entire operating band. A dual radiation pattern with 60-degree horizontal and 45-degree vertical beamwidth provides optimal coverage. The main body is constructed from UL94-V0 flame-retardant ABS with anodized aluminum arms. Mechanical stability is guaranteed in winds up to 80 km/h. Adjustable arm lengths range from 30 to 120 cm for precise resonance tuning. This antenna can receive DVB-T2 digital signals with a minimum signal level of -85 dBm.
The antenna structure features a dual bow-tie array with a passive reflector. Brass connectors with gold plating minimize oxidation. A built-in 1:4 balun impedance matching transformer is integrated at the antenna base. The integrated Low-Noise Amplifier LNA has a 1.5 dB Noise Figure and adjustable gain of 15-25 dB. The amplifier power is supplied via a 5V USB port or a 12V adapter. Internal SAW filters attenuate mobile interference 800-2200 MHz by up to 40 dB. It can be mounted on a standard 20mm stand or wall with an omnidirectional bracket. Overall dimensions in the folded position are 40x25x15 cm with a weight of 850 grams. IP54 weather resistance makes it suitable for indoor and semi-outdoor use.You can order and buy Desktop 2014 Antenna from Iran by contacting us through whatsaap and email.
WEBSITE: Desktop 2014 Antenna Iran
Installing and Adjusting a Tabletop Antenna
To install a tabletop antenna, first choose a suitable location with minimal obstructions between the antenna and the transmission tower. Connect the coaxial cable to the ANT IN port of your TV or receiver. Place the antenna on a flat, stable surface and extend the radiating elements rods according to the manual. Point the antenna towards the nearest broadcast signal tower. Use your TVs Auto Scan menu to search for available channels. If reception is poor, gently adjust the antennas angle and height to maximize signal strength. Use a signal booster only if truly necessary and for very long distances. Check cable connections for cracks or insulation damage. For digital TVs, select the "Digital" or "DTV" option in the settings menu. In remote areas, a high-gain antenna may be required.
