- Price :negotiated
Control board , Iran

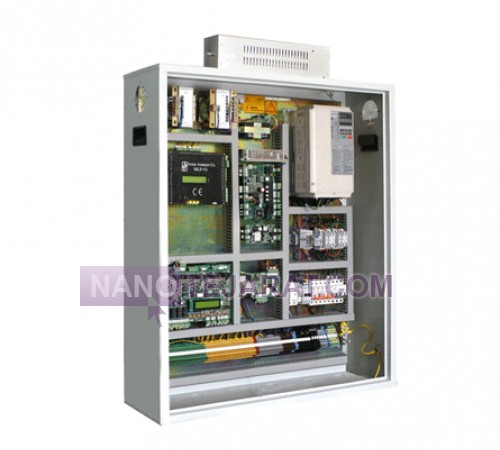

The elevator control panel manages cabin and counterweight movement and oversees the entire safety system. It includes a PLC or microcontroller, VVVF inverter for traction motor speed control, relays, fuses, control circuits, and cabin/floor status displays. Power consumption ranges from 1 to 5 kW depending on elevator capacity, with input voltage 220–380 V AC three-phase and operating current 5–20 A. The panel ensures floor-level stopping accuracy within ±5 mm and handles queue management, door coordination, and emergency fault detection.
Structurally, the cabinet is made of durable steel with anti-scratch and moisture-resistant coating, equipped with natural or fan cooling. Electronic boards, PLCs, and relays are mounted with standard terminals and anti-noise protection. The panel includes inputs from door sensors, cabin weight sensors, position sensors, and outputs for motor, brakes, doors, and emergency alarm. It is designed for residential elevators up to 15 floors and commercial elevators up to 25 floors, complying with EN81 and ISO 25745 safety standards.You can order and buy Control board from Iran by contacting us through whatsaap and email.
WEBSITE: Control board Iran
Role of a High-Quality Control Panel in Smooth and Safe Elevator Cabin Movement in iran
A high-quality control panel is the core of elevator motion control, directly affecting smooth movement, precise stops, and cabin safety. It accurately processes signals from the motor, sensors, and safety switches, coordinating acceleration and speed to prevent sudden stops, vibrations, or unstable motion. Quality panels also protect the motor, gearbox, or gearless system from overload, optimize energy use, and extend mechanical and electrical component lifespan. Furthermore, proper operation of sensors, brakes, and doors under a reliable control panel ensures user safety and protects internal equipment.
