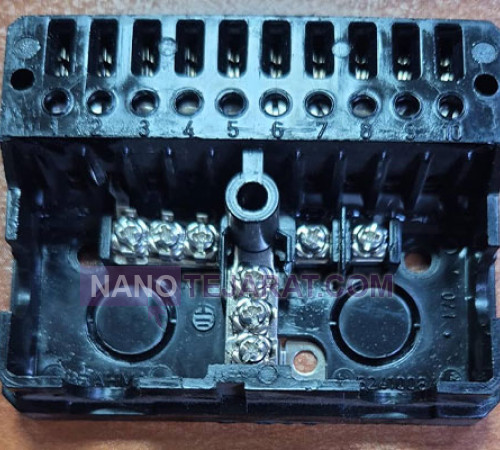

The Brahma relay bases models RE3 and SM592 serve as electrical and mechanical interfaces for the safe mounting and connection of control relays in combustion systems. These bases are rated for 250V AC and support a maximum current of 10 amperes. Their bodies are made of heat-resistant reinforced polyamide, allowing operation in ambient temperatures ranging from -20 to +85 degrees Celsius. The pin configuration follows the standard 11-pin layout, ensuring precise and noise-free connections. These models are DIN rail mountable with a standard width of 35 millimeters, simplifying installation in industrial electrical panels.
The RE3 and SM592 bases fully comply with international safety standards such as CE and UL, ensuring reliable operation in control circuits. The insulation distance between contacts exceeds 3 millimeters, preventing accidental short circuits. Terminal connections use screw-type clamps with a torque tolerance of 0.8 Nm. Electrical resistance between terminals exceeds 100 megaohms at 500V DC. These bases are compatible with various Brahma flame relays and timers, with a mechanical life expectancy of over 100,000 switching cycles.
WEBSITE: Brahma RE3 and SM592 relay base Iran
The Brahma relay bases RE3 and SM592 are designed for mounting control relays in industrial electrical panels, with a rated voltage of 250V AC and 10-amp current capacity. These bases feature a standard 11-pin configuration and are made of flame-retardant, heat-resistant polyamide insulation. Their operating temperature range is from -20 to +85 degrees Celsius, ensuring stable performance in industrial environments. Mounting is done securely on a standard 35 mm DIN rail. Screw-type terminals with a torque capacity of 0.8 Nm allow for safe and stable wire connections. The insulation distance between contacts exceeds 3 millimeters to prevent short circuits. An insulation resistance greater than 100 megaohms at 500V DC is guaranteed for reliable dielectric performance.
-
-
