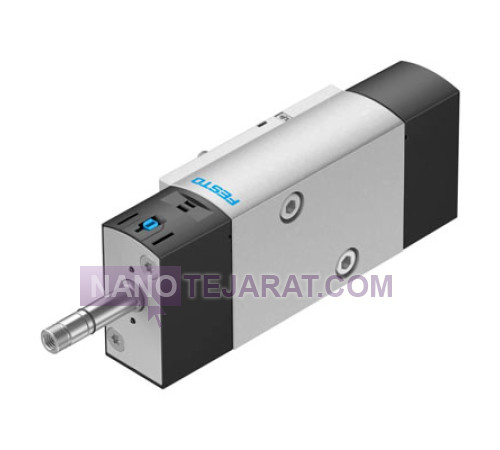

Pneumatic Valve FESTO VSNB-FC-M52-M-G14-P2547017

The FESTO pneumatic valve model VSNB-FC-M52-M-G14-P2547017 is a high-precision compressed air control valve designed for industrial automation systems. It features a 5/2-way configuration with a spring-return mechanical actuator, suitable for double-acting cylinders. The operating pressure range is from 2 to 8 bar, with an air flow capacity of up to 700 liters per minute. The body is made from hard-anodized aluminum alloy, providing excellent resistance to corrosion and wear. The valve operates within a temperature range of -10°C to +60°C and uses G1/4 internal thread ports for connection.

The VSNB-FC-M52-M-G14-P2547017 valve incorporates NBR sealing elements to prevent air leakage and ensure extended service life. Its switching time is under 25 milliseconds, and noise emission is below 70 dB. The total weight is approximately 420 grams, and it can be mounted modularly on a manifold or standard base. Designed according to ISO 5599 and CE standards, this valve is ideal for assembly lines, packaging industries, and material handling equipment.
